Apex truck camper on a pickup

Turn-key & four-season

Apex

A welded aluminum slide-in with canvas pop-up walls, and water, power, diesel heat and a 3000W inverter already in it.

Starting at $26,995 installed

Apex truck camper on a black Chevrolet Silverado

By the numbers

Everything a basecamp needs

Queen bed
60″ × 80″
Sleeps up to 4 with the dinette
Fresh water
16 to 21 gal
Mid-size / full-size
Solar
150W
Up to 600W as an upgrade
Dry weight
1,125 to 1,412 lb
installed, 5 to 8 ft beds; shipped 57 lb less

Approximate. Every Apex is drawn to your truck before it is built.

Detailed specs

Specs

The numbers

Price
From $26,995 installed or $24,995 shipped
Dry weight
1,125 lb on a 5 ft bed to 1,412 lb on an 8 ft bed, installed with the battery. Shipped builds leave the battery out and weigh 57 lb less. Water and options extra.
Construction
Fully welded aluminum monocoque, no wood
Insulation
1″ XPS board in body, floor and ceiling, quilted thermal liner on the canvas walls
Sleeping
60″ × 80″ pull-out queen, 2.75″ memory foam over coconut coir, plus a convertible dinette. Sleeps up to 4
Fresh water
16 gal mid-size, 21 gal full-size, with level gauge and exterior fill
Power

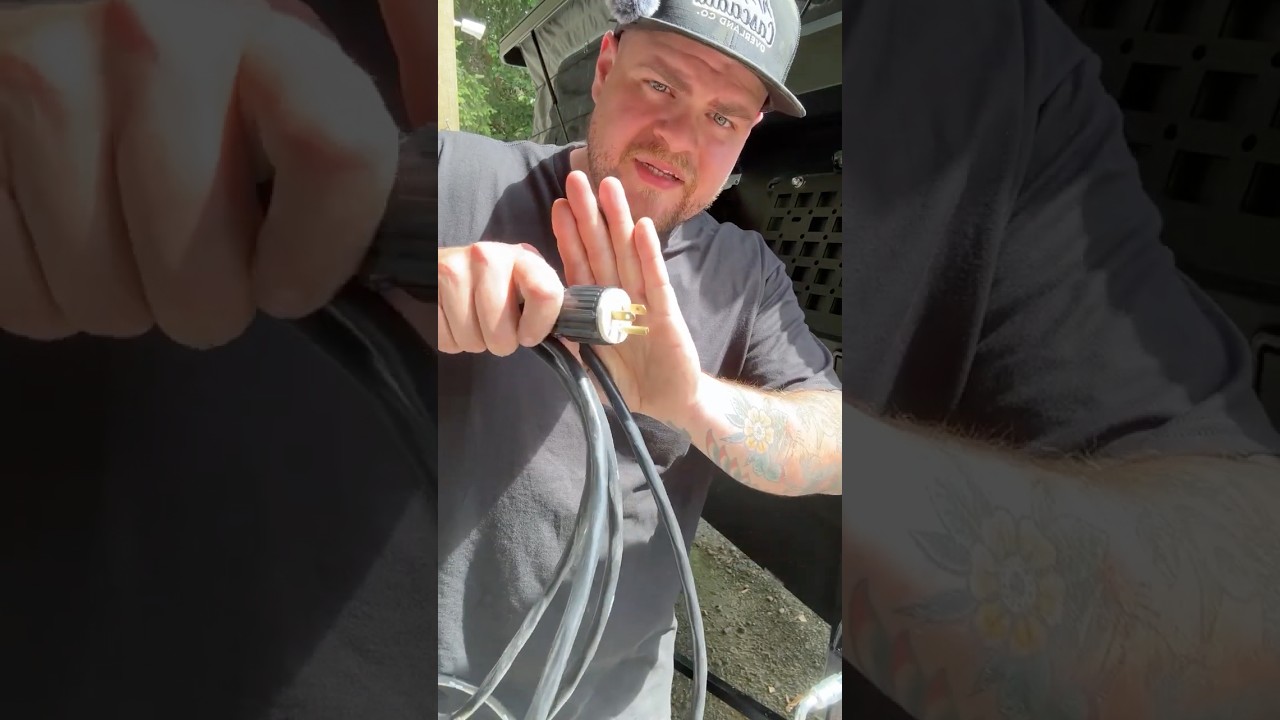

3000W inverter with shore charger, 2 interior and 1 exterior AC port
Charging
150W solar, Renogy 50A DC-DC Charger/MPPT Controller
Battery
LiTime 320Ah self-heating lithium on installed builds
Heat and hot water

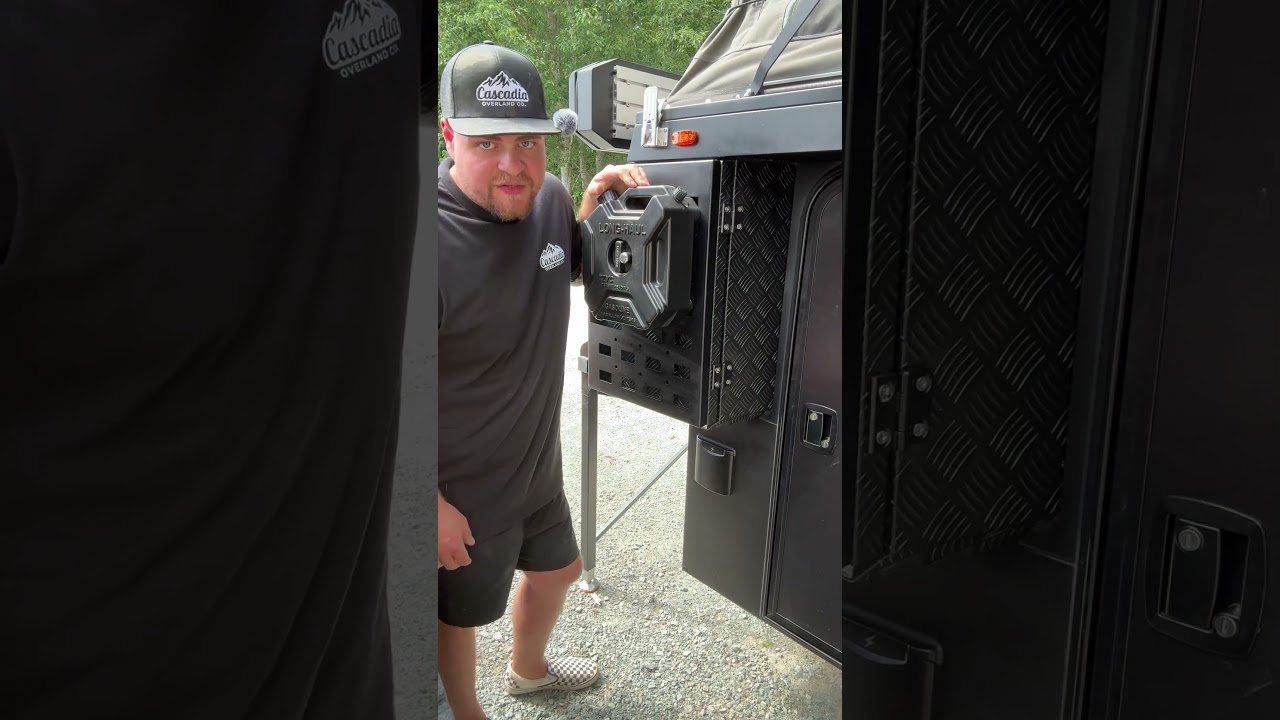

Eberspacher D2L diesel air heater and D5E diesel water heater
Fuel
Diesel only, no propane
Fridge
55L dual-zone portable for $600, or the 50L built-in
Roof lift
Manual with gas struts. Electric lift optional
Roof fan
Standard Roof Fan: ten speeds, reversible airflow, rain sensor that closes the lid, remote, 12″ blade
Also included

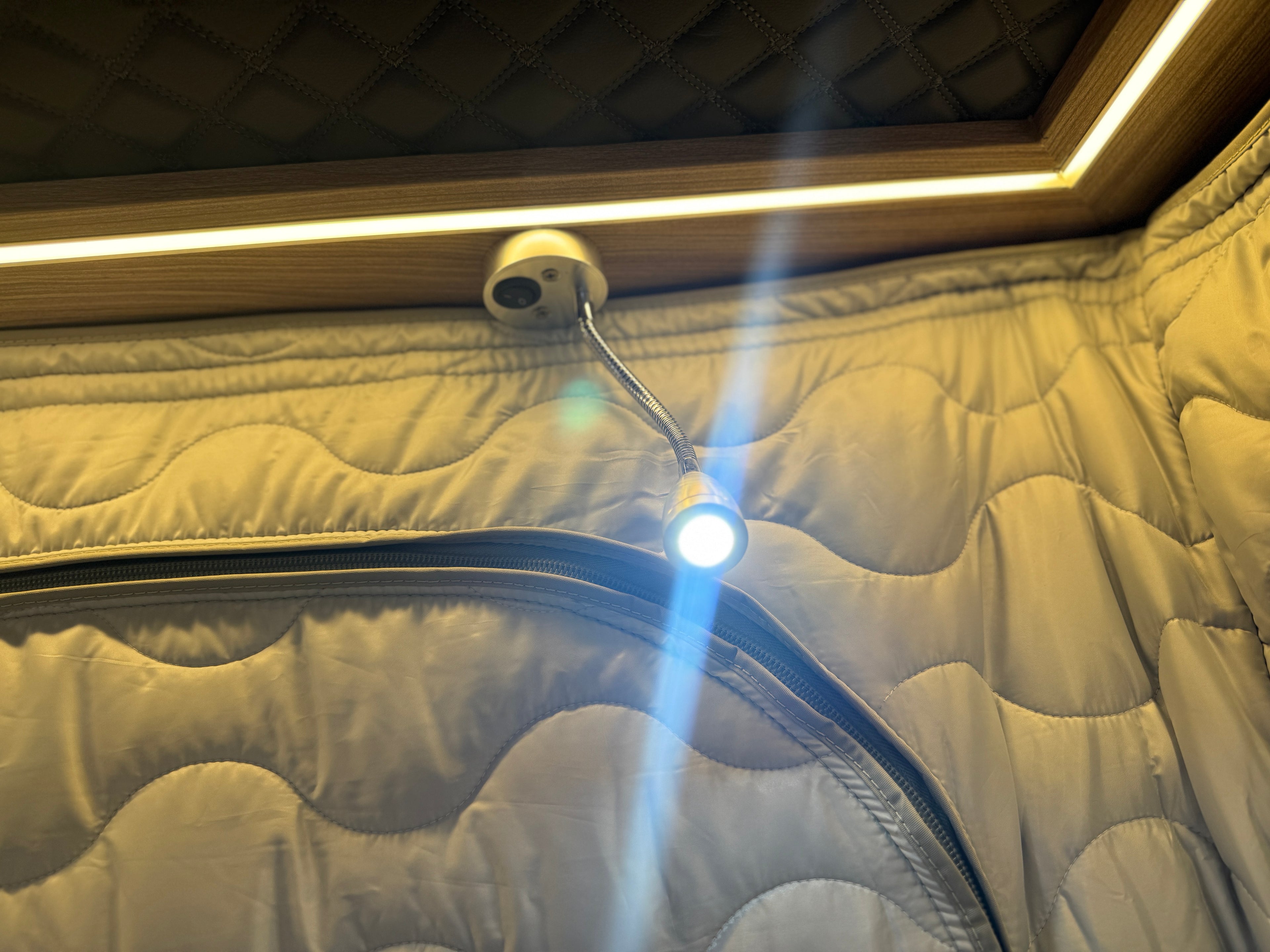

Ladder, exterior lighting
Warranty
2-year limited on the built-in systems, plus 5-year structural

All figures are approximate. Exact numbers come with your CAD drawing.

Options

Make it yours

Options

Pick them in the 3D builder. Most of them show on the camper as you add them.

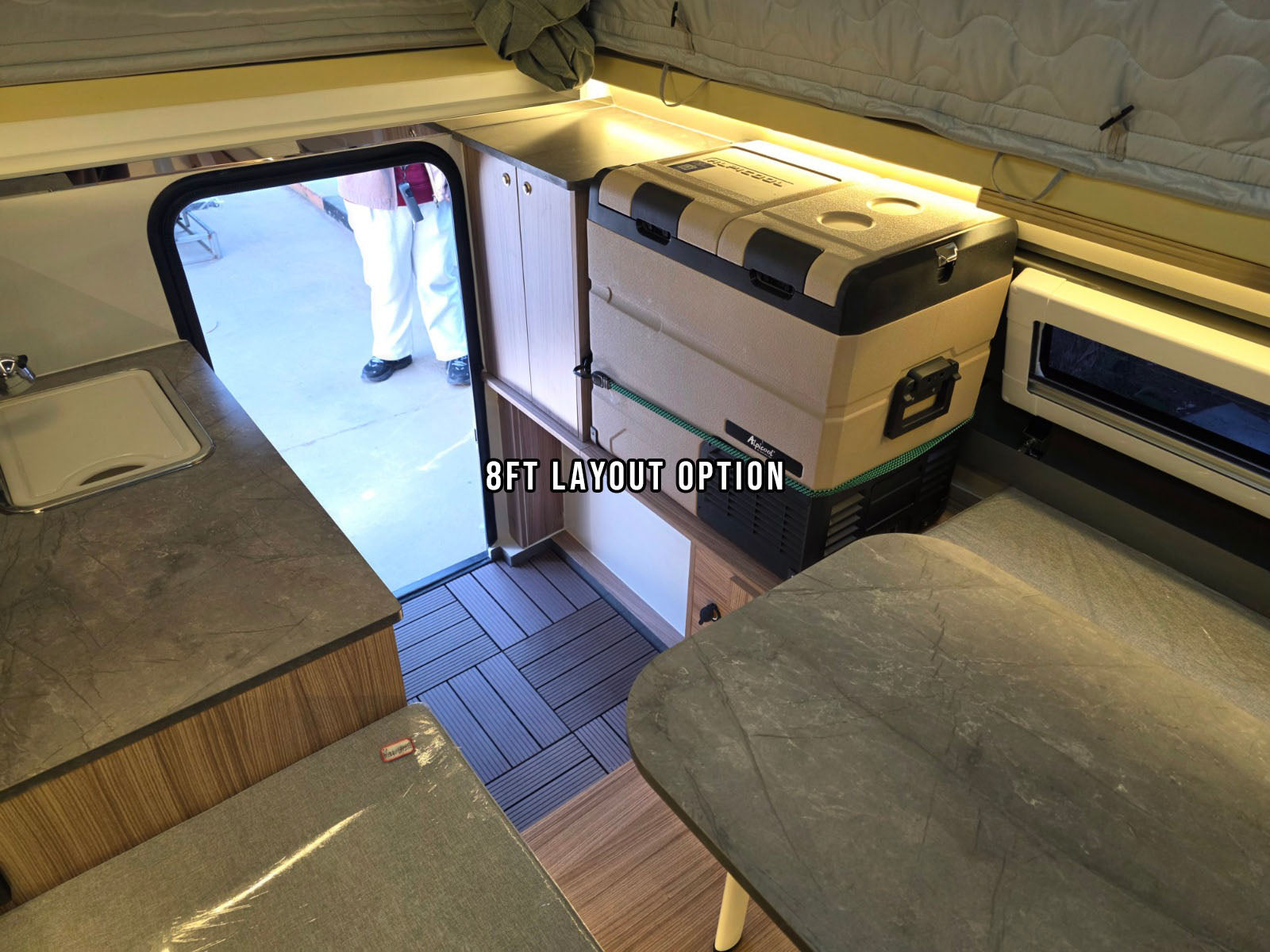

55L portable fridge

55L portable fridge

A top-opening dual-zone fridge. It lifts out and sets up outside at camp.

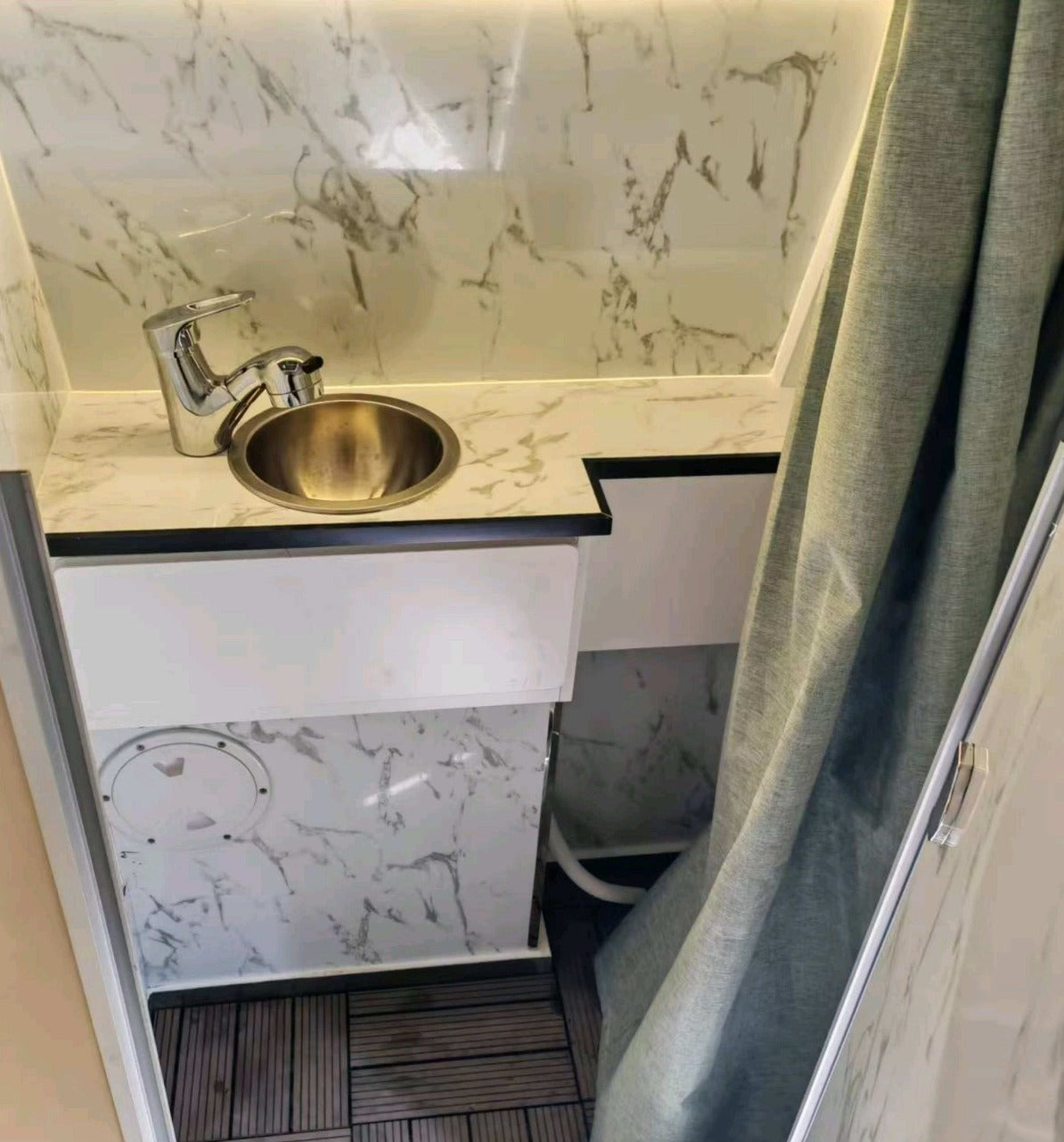

Fold-out wet bath

Fold-out wet bath

Folding sink, a wet floor with a drain and room for a cassette toilet. 6.5 ft beds and longer.

Dometic CTW 4110 toilet

Dometic CTW 4110 toilet

A permanent 12V cassette toilet. Goes with the fold-out wet bath.

Interior shower

Interior shower

Waterproof floor, a drain and a curtain on a ceiling track.

Diesel pull-out stove

Diesel pull-out stove

One large burner that slides out over the tailgate. Full-size trucks only, and not with the wet bath or toilet.

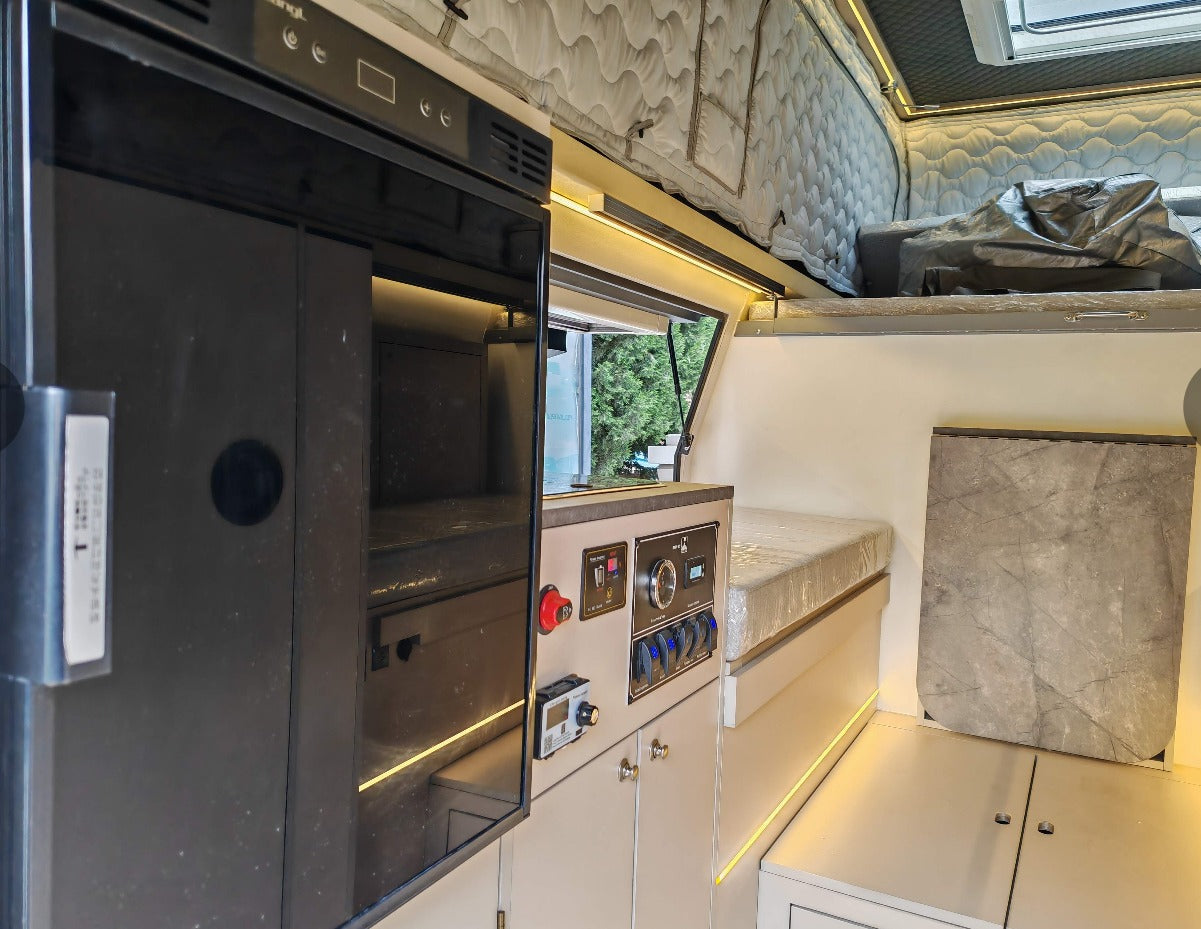

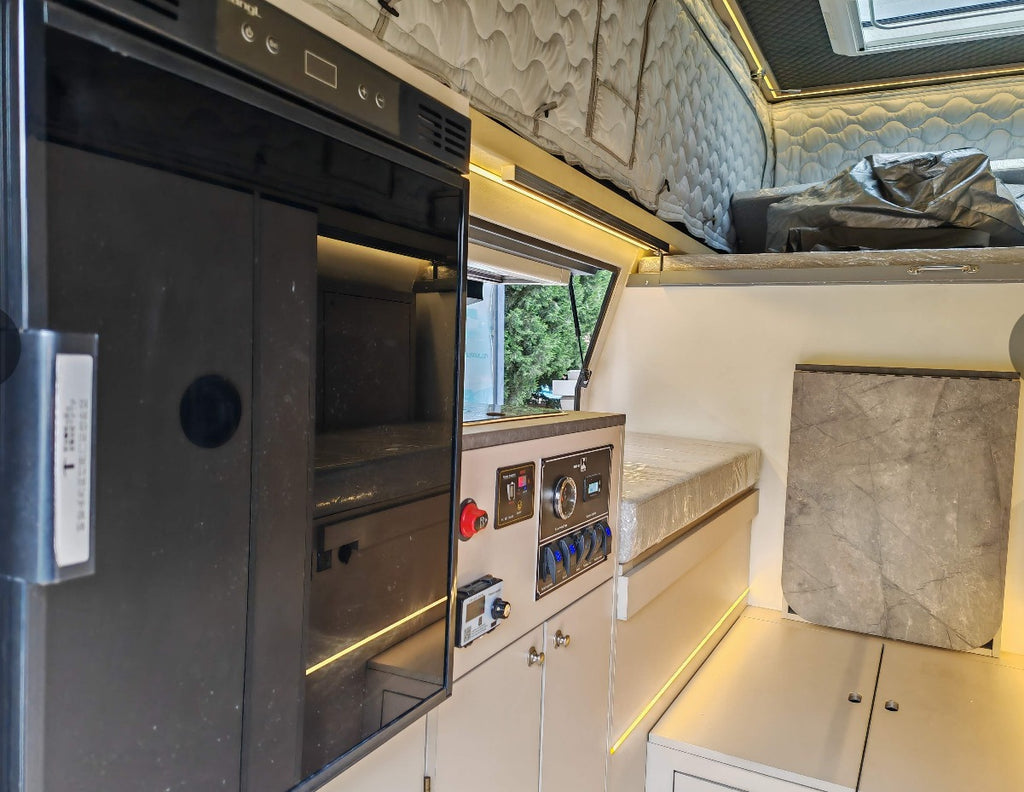

Built-in fridge

Built-in fridge

A 50L vertical dual-zone fridge, built into the rear cabinet.

Dometic FreshJet 5 A/C

Dometic FreshJet 5 A/C

Roof air conditioner that runs off the 3000W inverter.

Electric lift

Electric lift

Raises and lowers the roof for you, with an automatic snow lockout.

Driver-side slide-out

Driver-side slide-out

The biggest storage add, in place of the gullwing window.

Roof fan upgrade

Roof fan upgrade

MaxxAir 7500K in place of the standard roof fan.

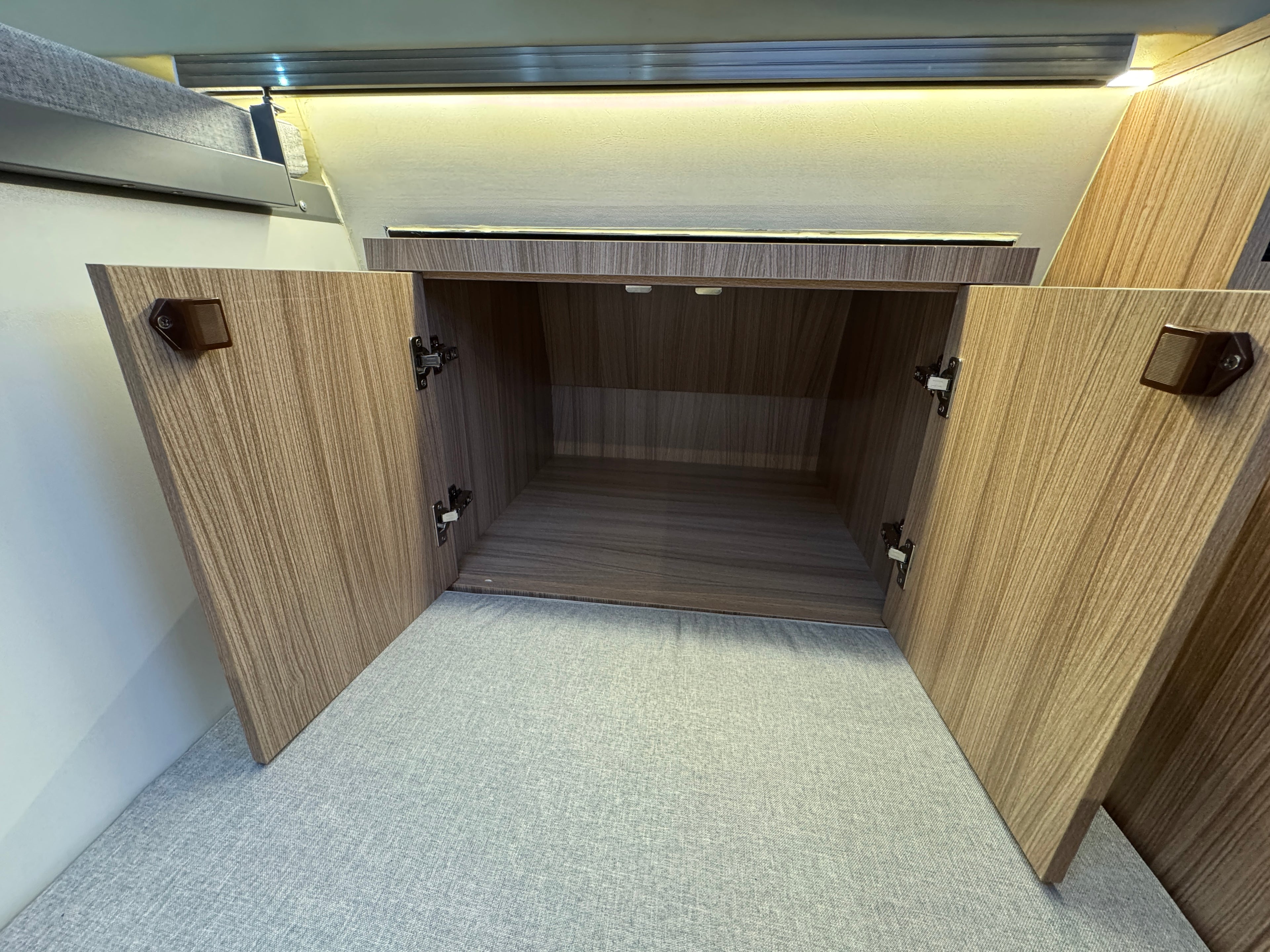

Finishes

Finishes

Pick the cabinet, countertop and floor finish at order time.

Also available

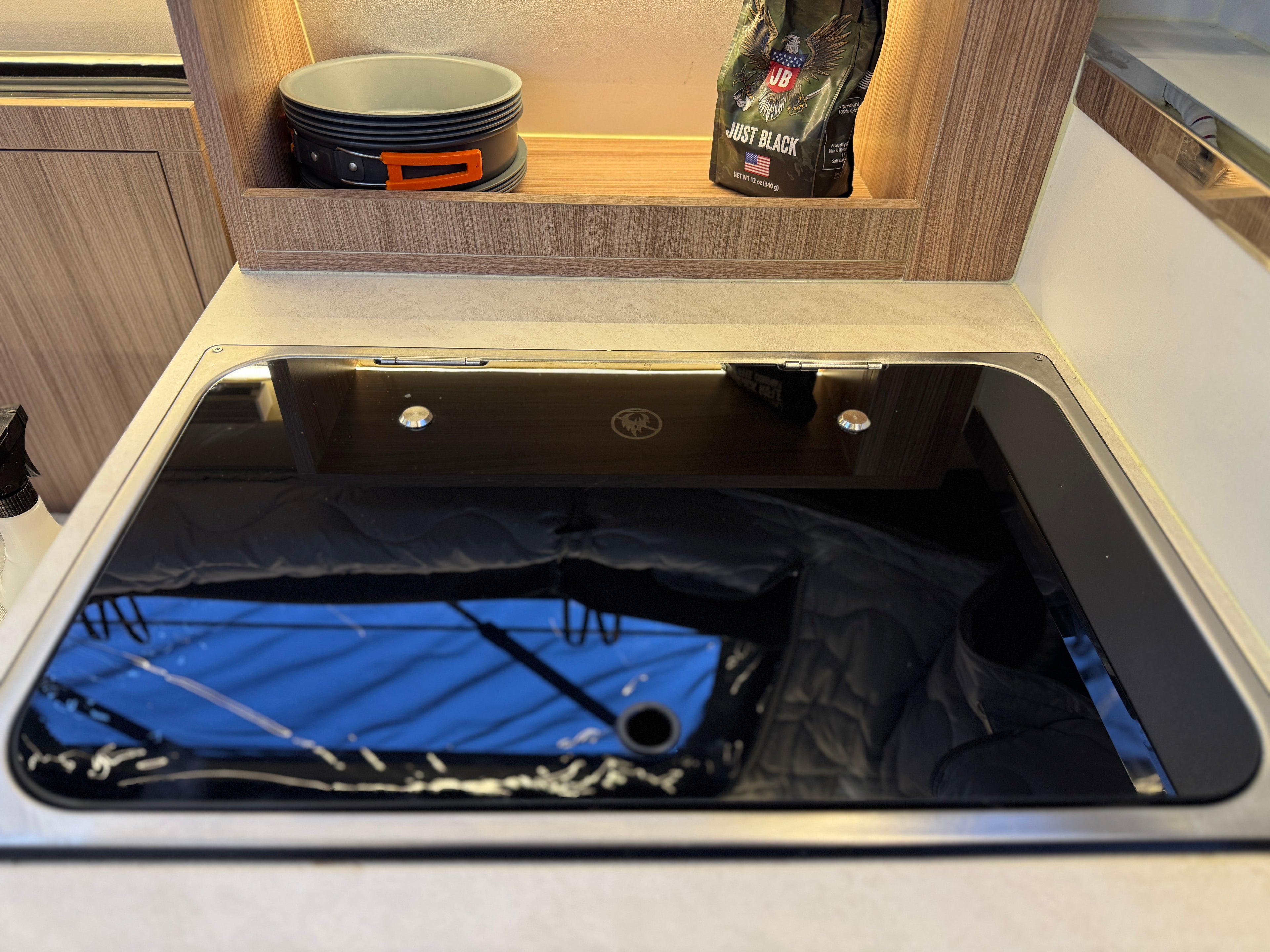

  • Sink and convection stove

    A 120V convection stove and sink under one folding glass cover.

  • 450W or 600W solar

    Both run on the standard Renogy 50A DC-DC Charger/MPPT Controller.

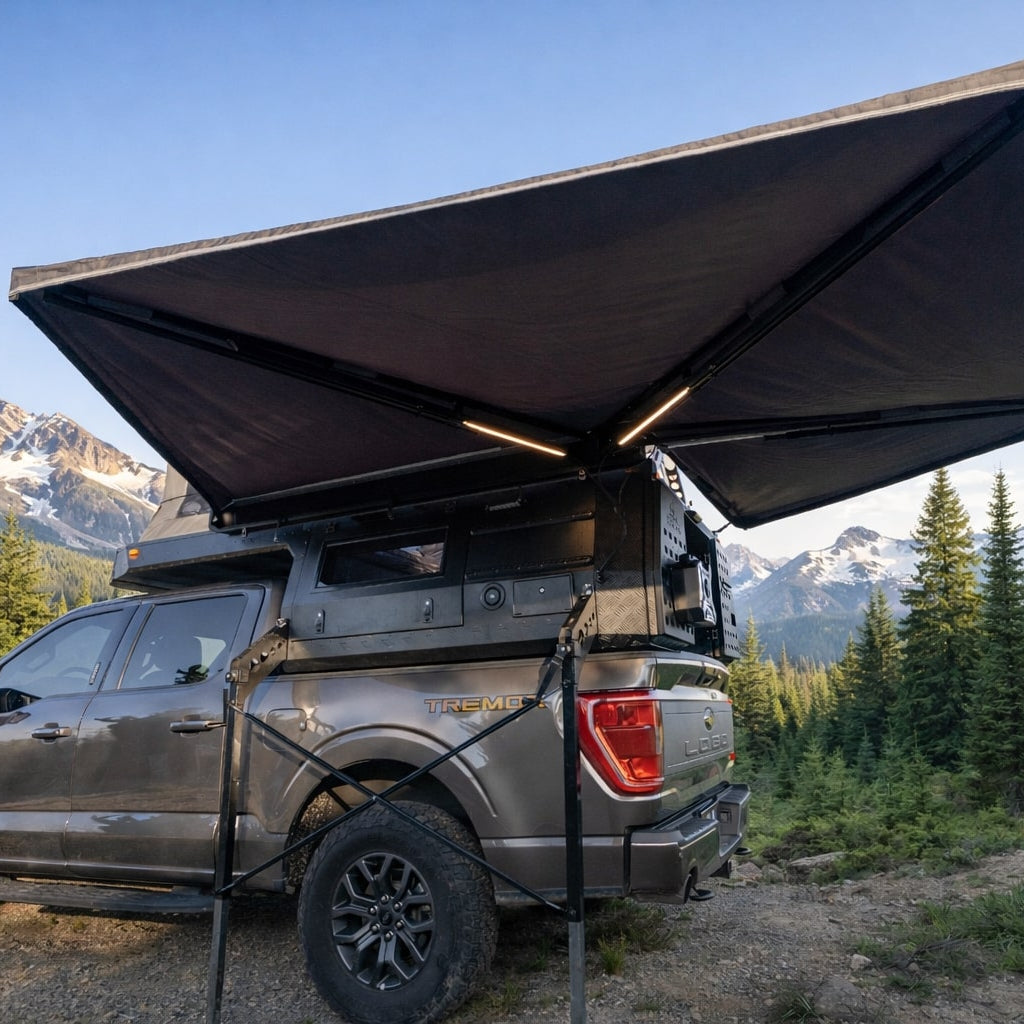

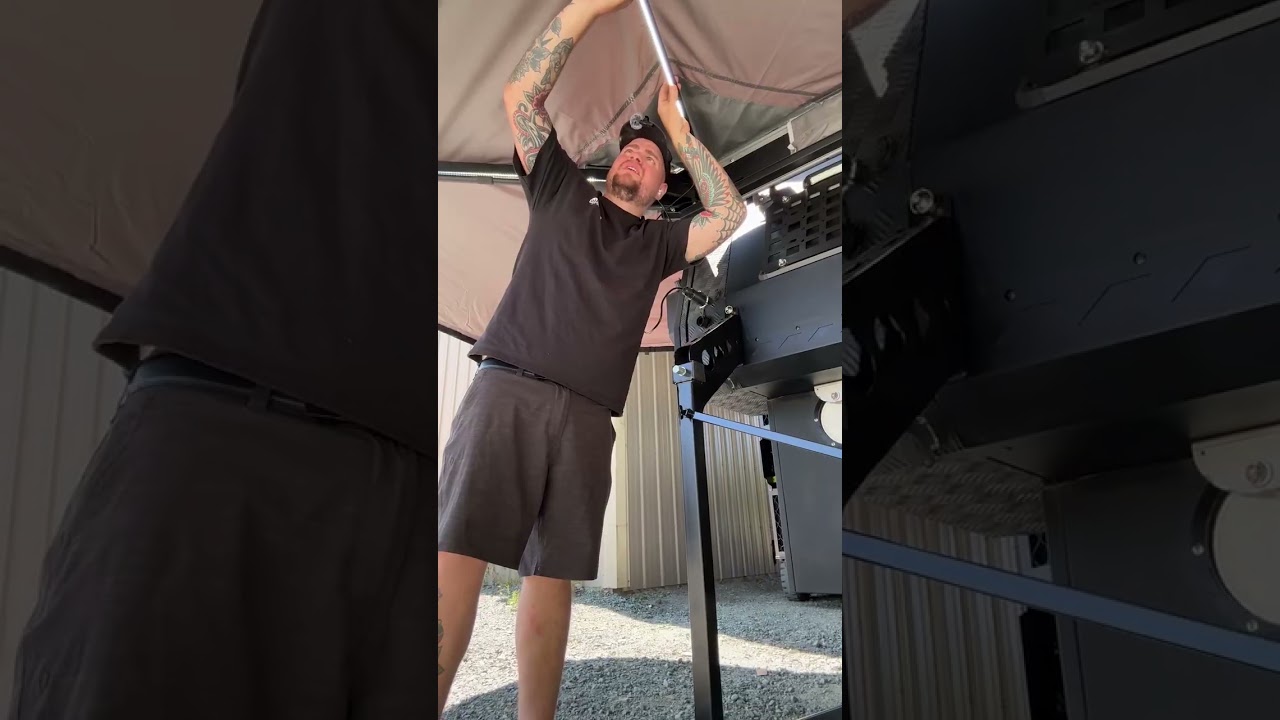

  • 270° awning

    Driver or passenger side.

  • Exterior shower tent

    Hooks up to the exterior water port.

  • Exterior gear panels

    Both sides, on the T-track.

From owners

Four thousand miles home

Steve
★★★★★We picked up our Apex on a Sunday! John and Eddy were kind enough to take half a day away from family and spend it going through everything with us. We camped all the way back to Texas with multiple stops to visit National Parks along the way. 12 days on the road and approximately 4000 miles to break it in. We really enjoyed the freedom and scenery that camping gave us versus hotel stays every night going out to get the Apex, not to mention the money saved. We have another trip of approximately 15 days planned for next month that we are really looking forward to in our Apex. Very pleased so far with the service John and Eddy have given us, and we believe the value the Apex has shown us is top notch. Highly recommend researching the Apex if you’re looking for a great pickup camper to hit the road with.
Steve· Verified buyer, Texas

Walkthroughs

See every system before you buy

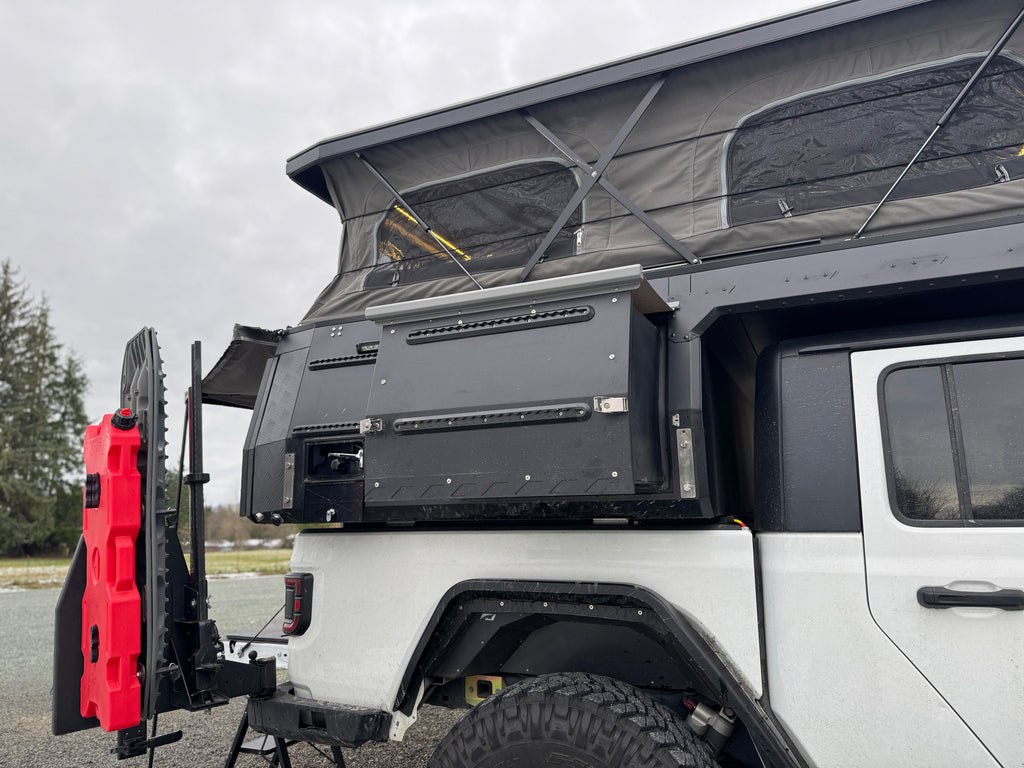

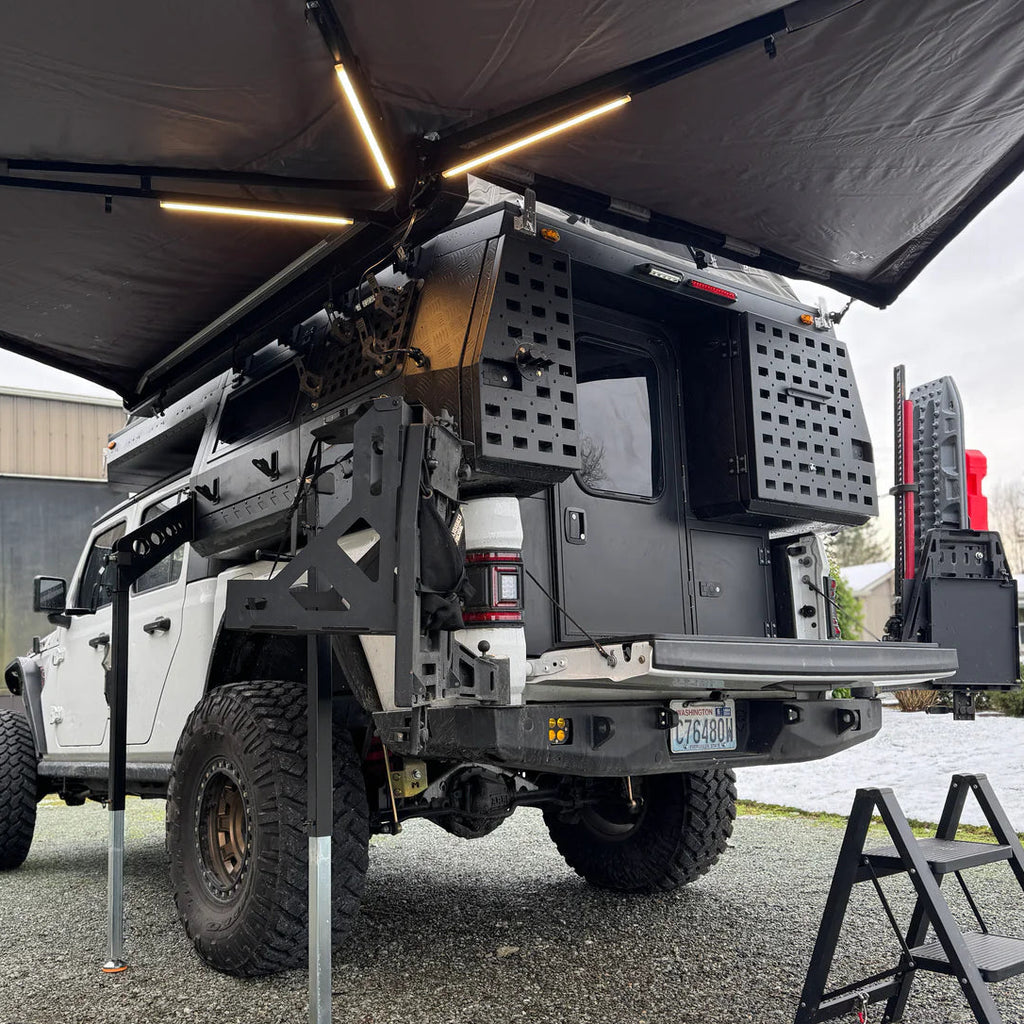

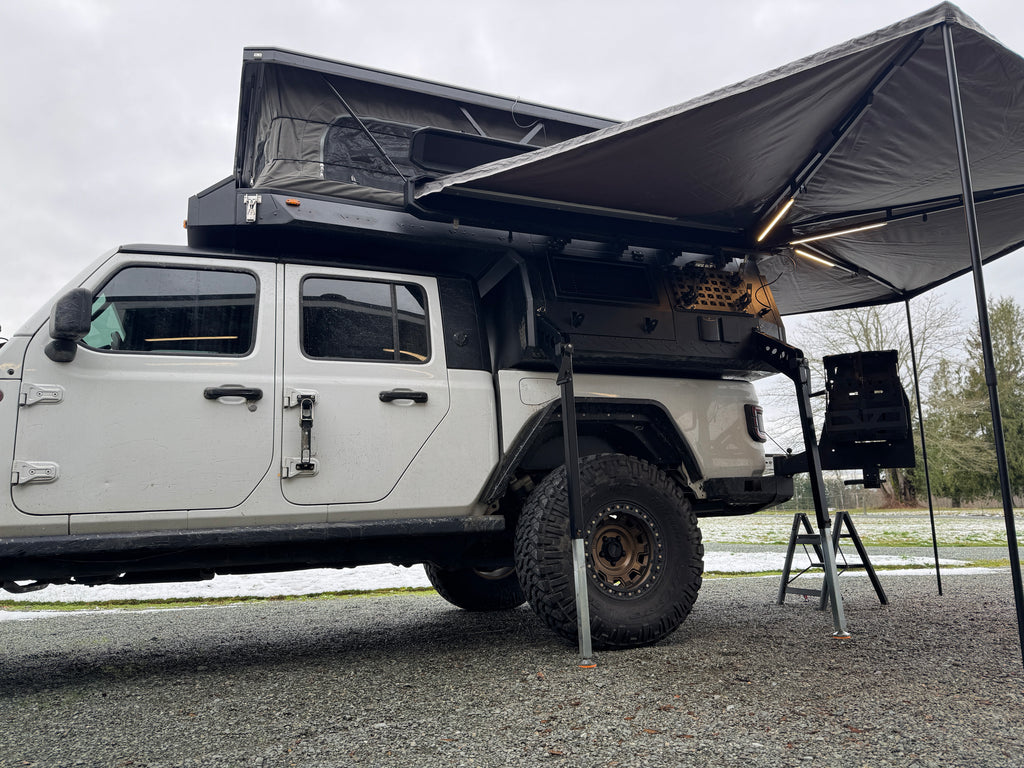

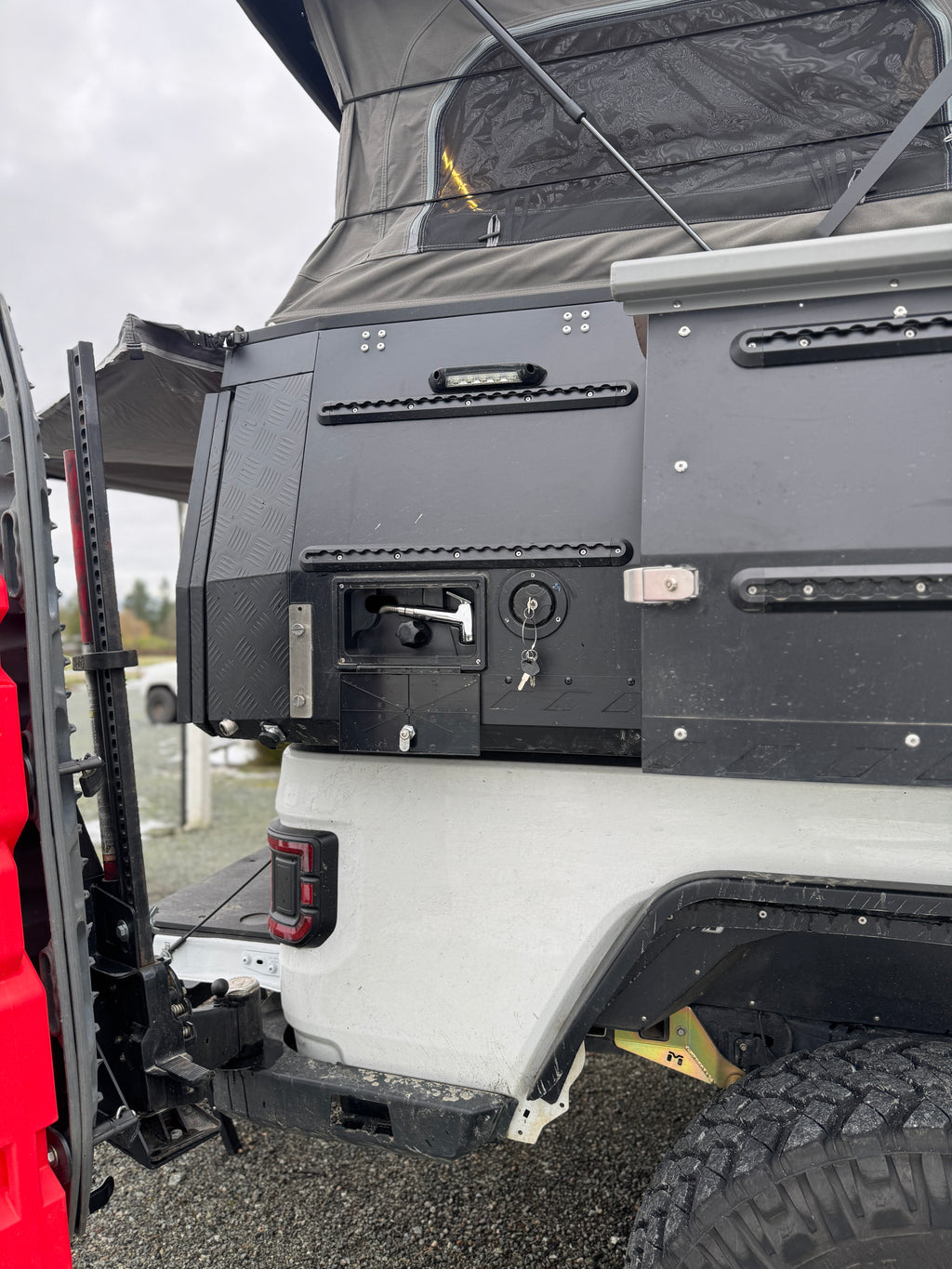

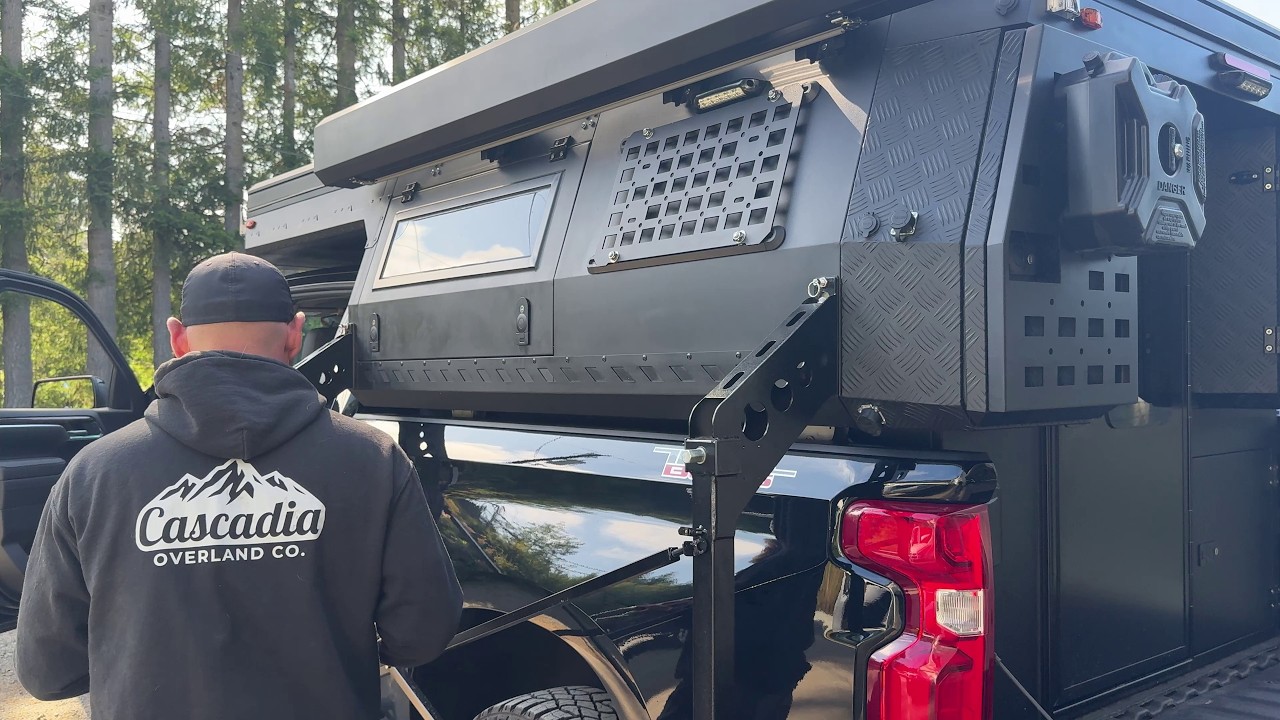

The full walkthrough, filmed on a 2025 Apex on a Jeep Gladiator. Some equipment has changed since, so check what comes with the Apex today above.

All videos on YouTube
See every system before you buy

Quick look

The short version

A quick look at the Apex, if you only have a minute.

The short version

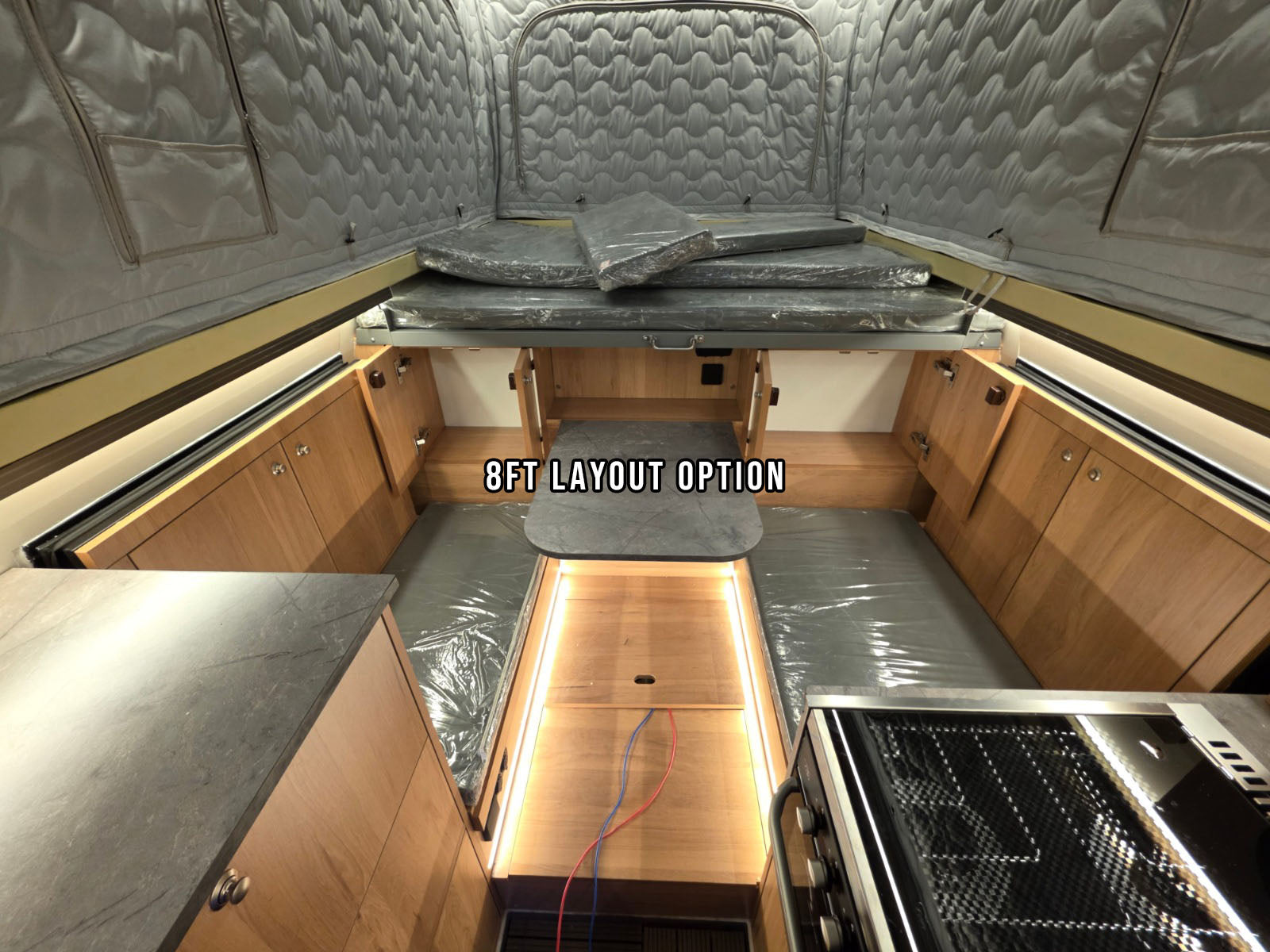

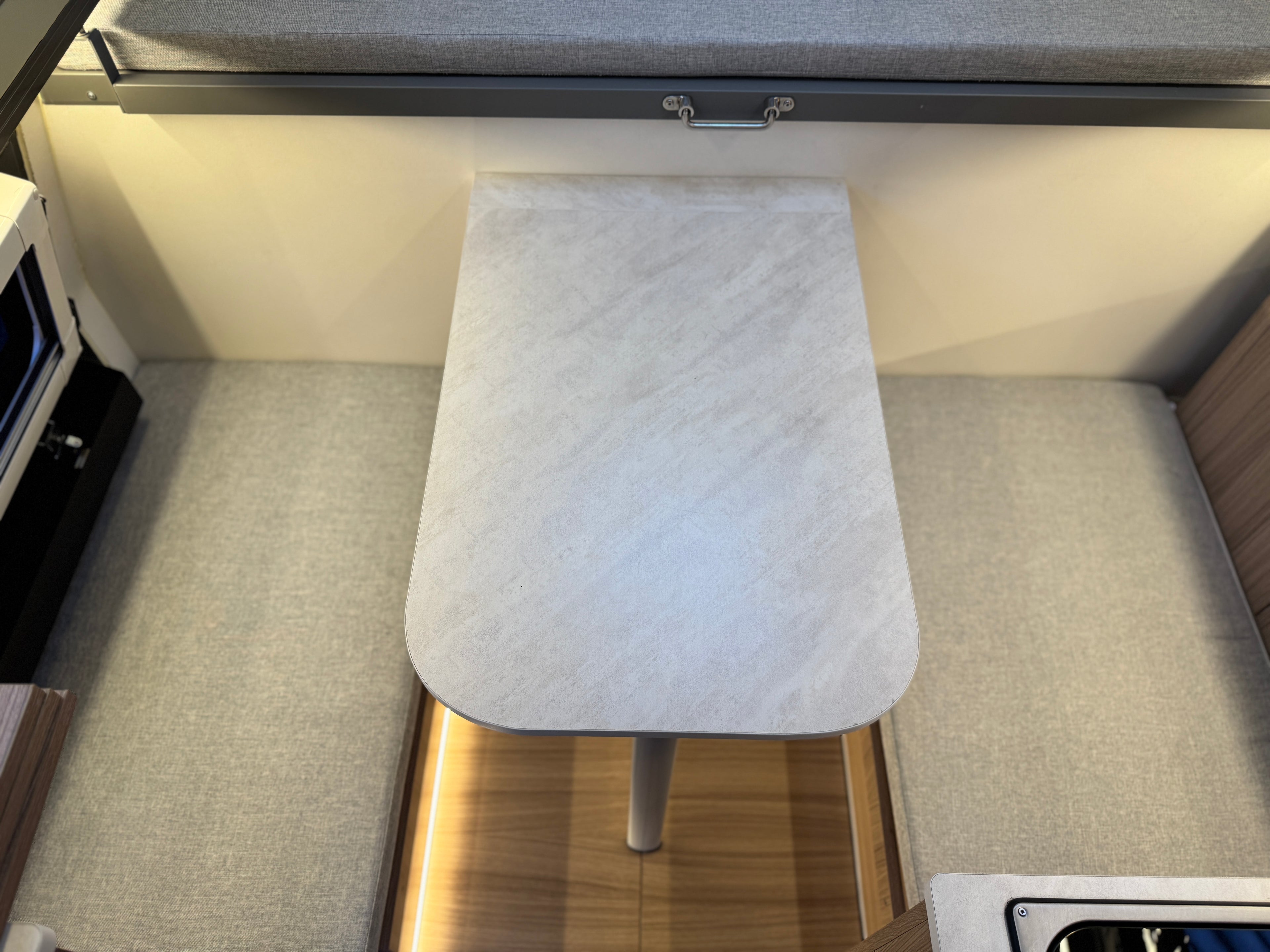

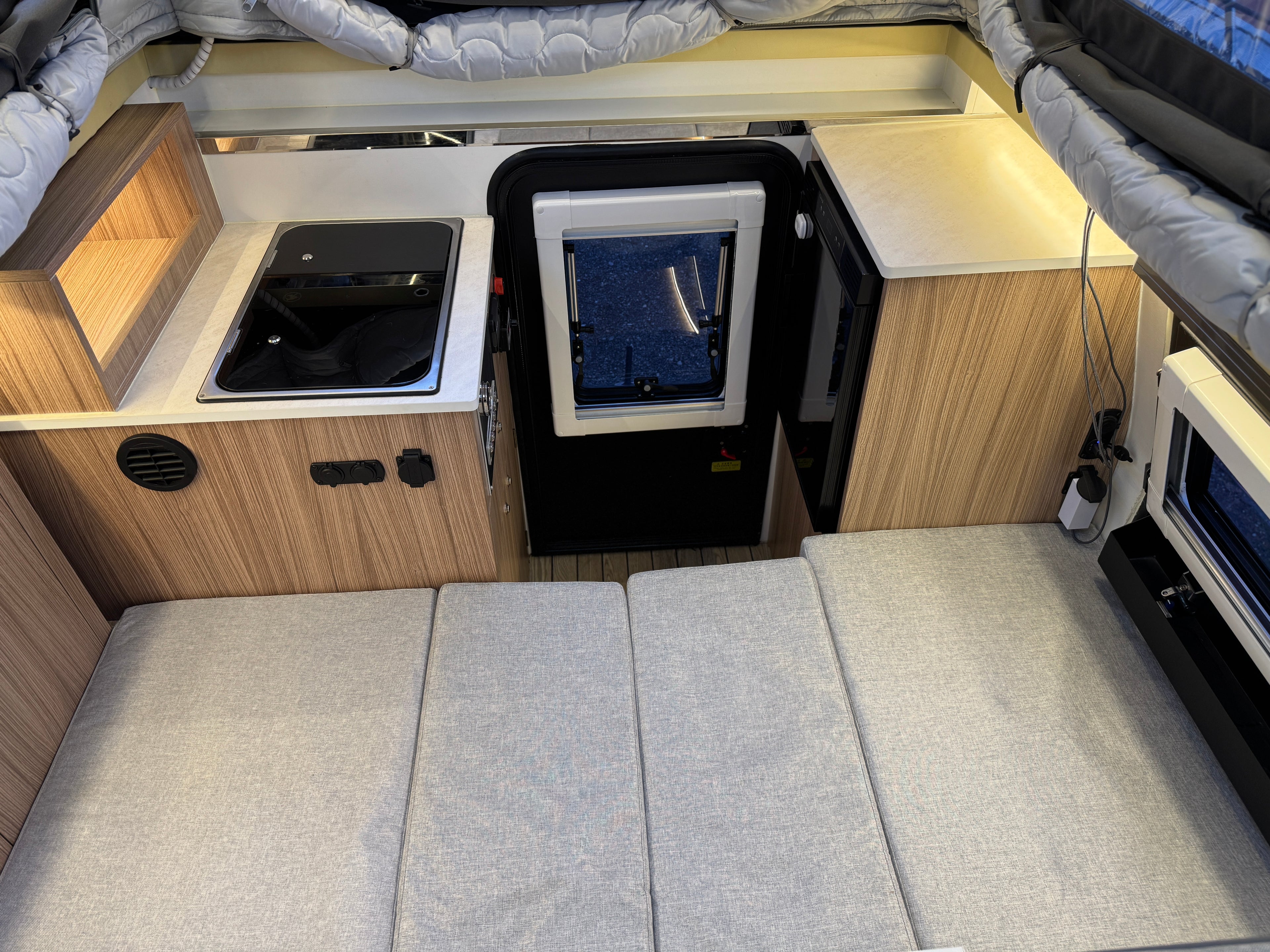

Apex interior dinette table

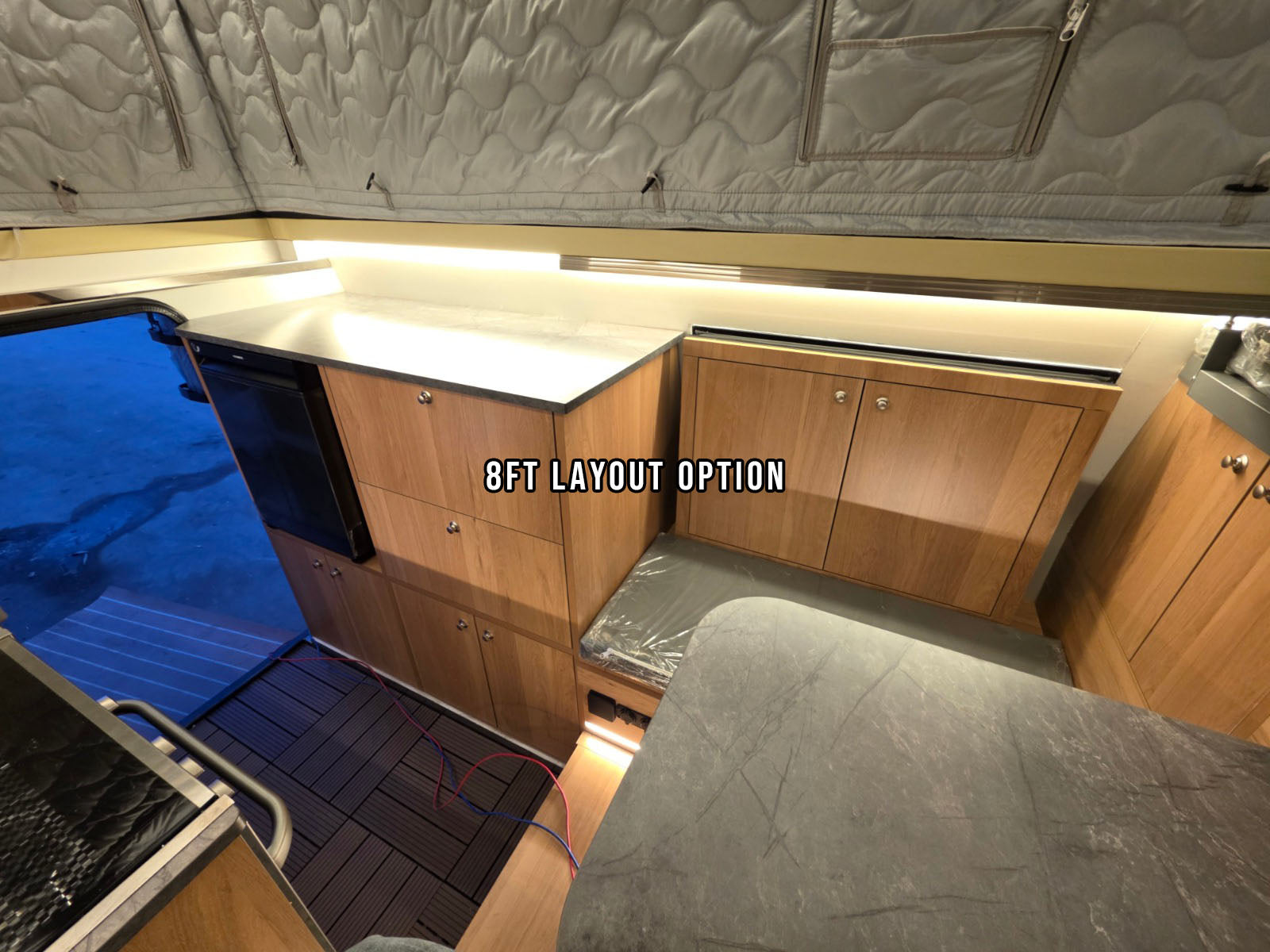

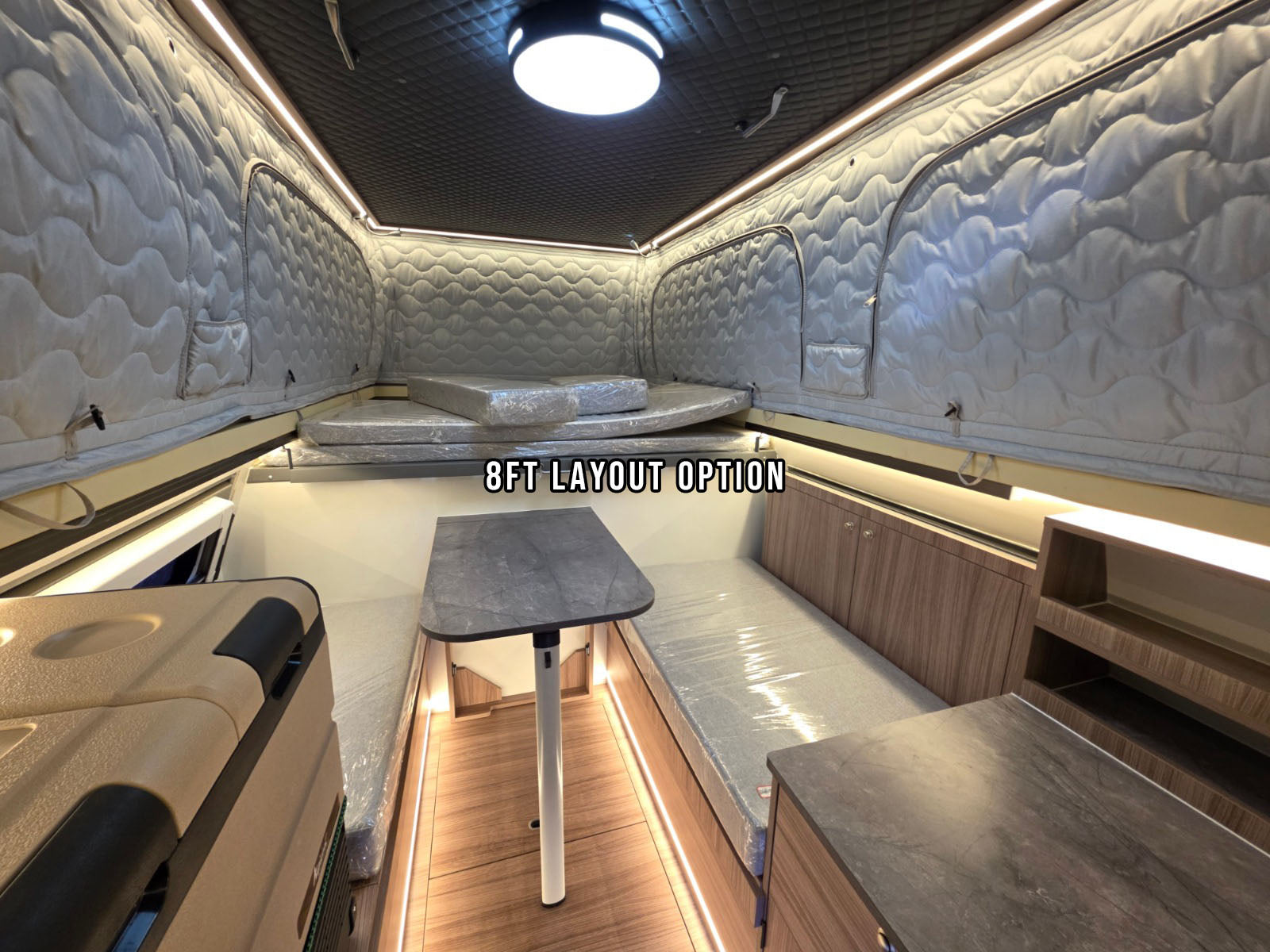

Living in it

A queen up top, a second bed below

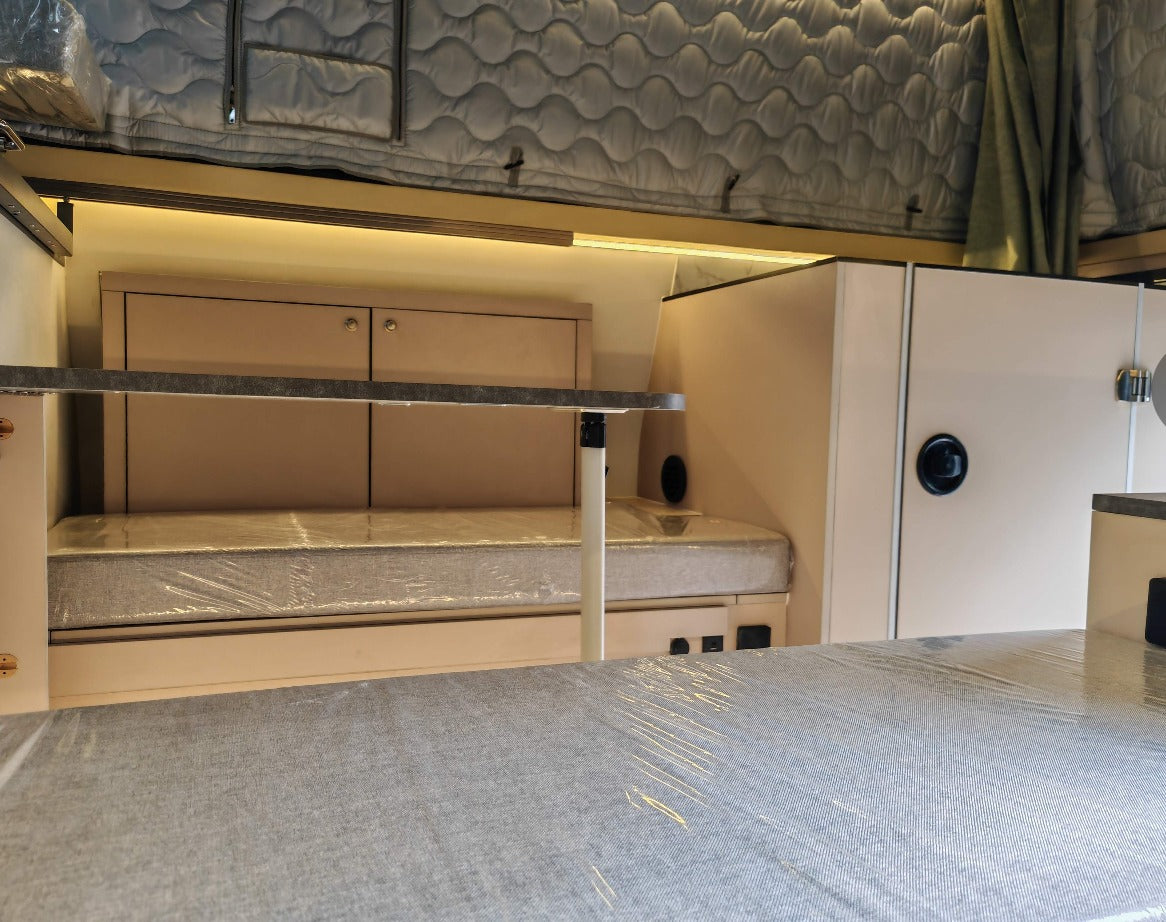

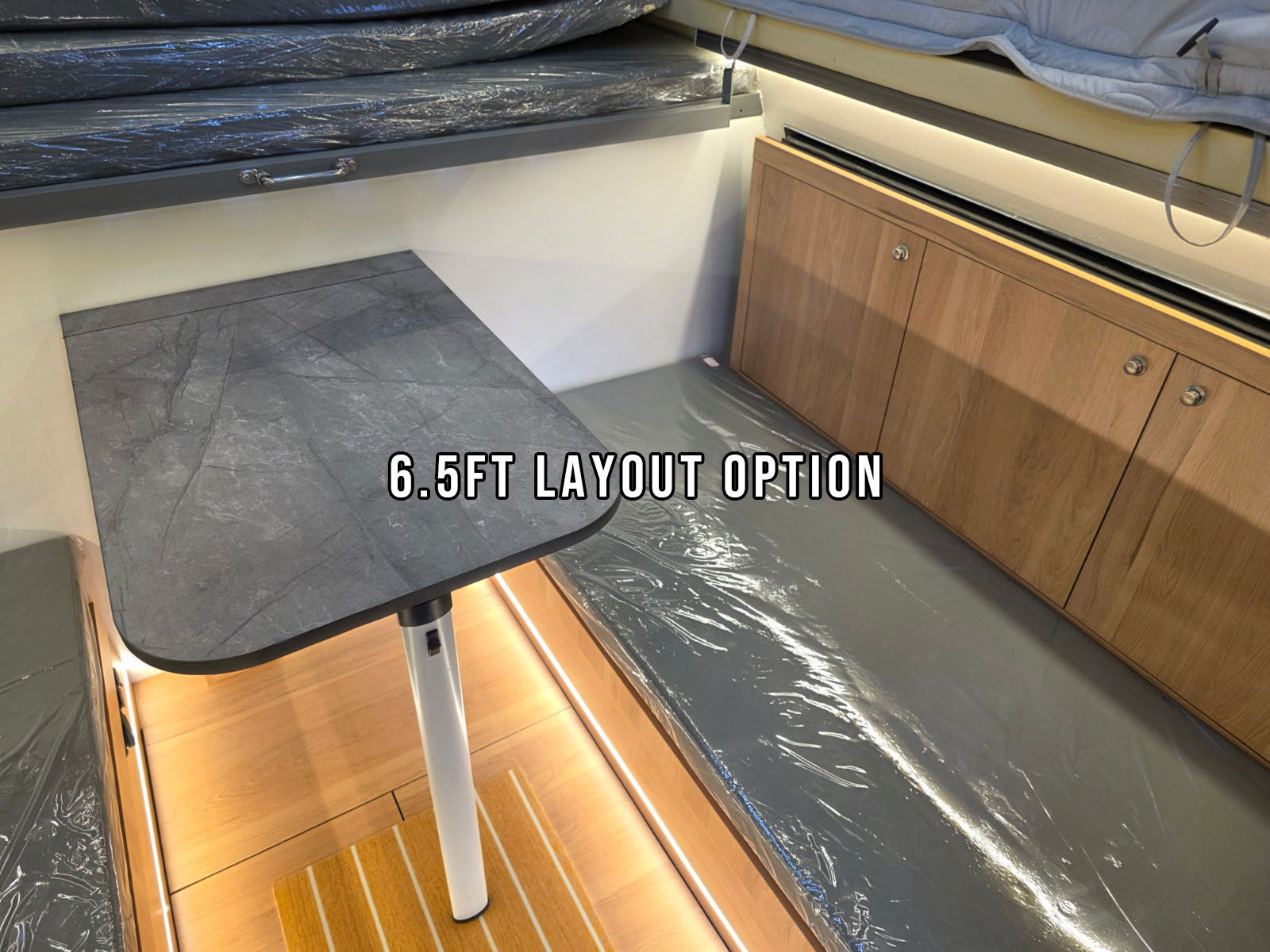

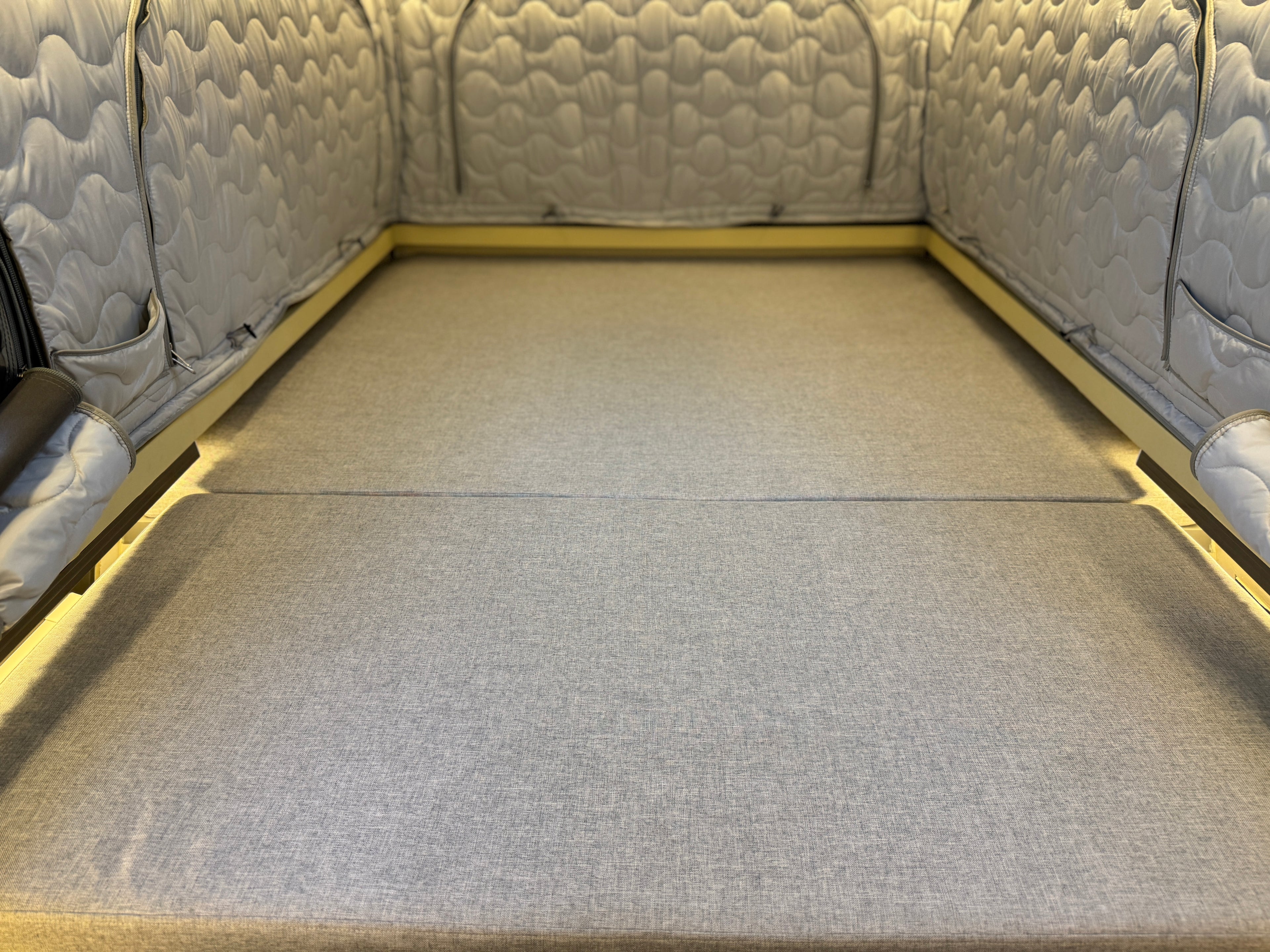

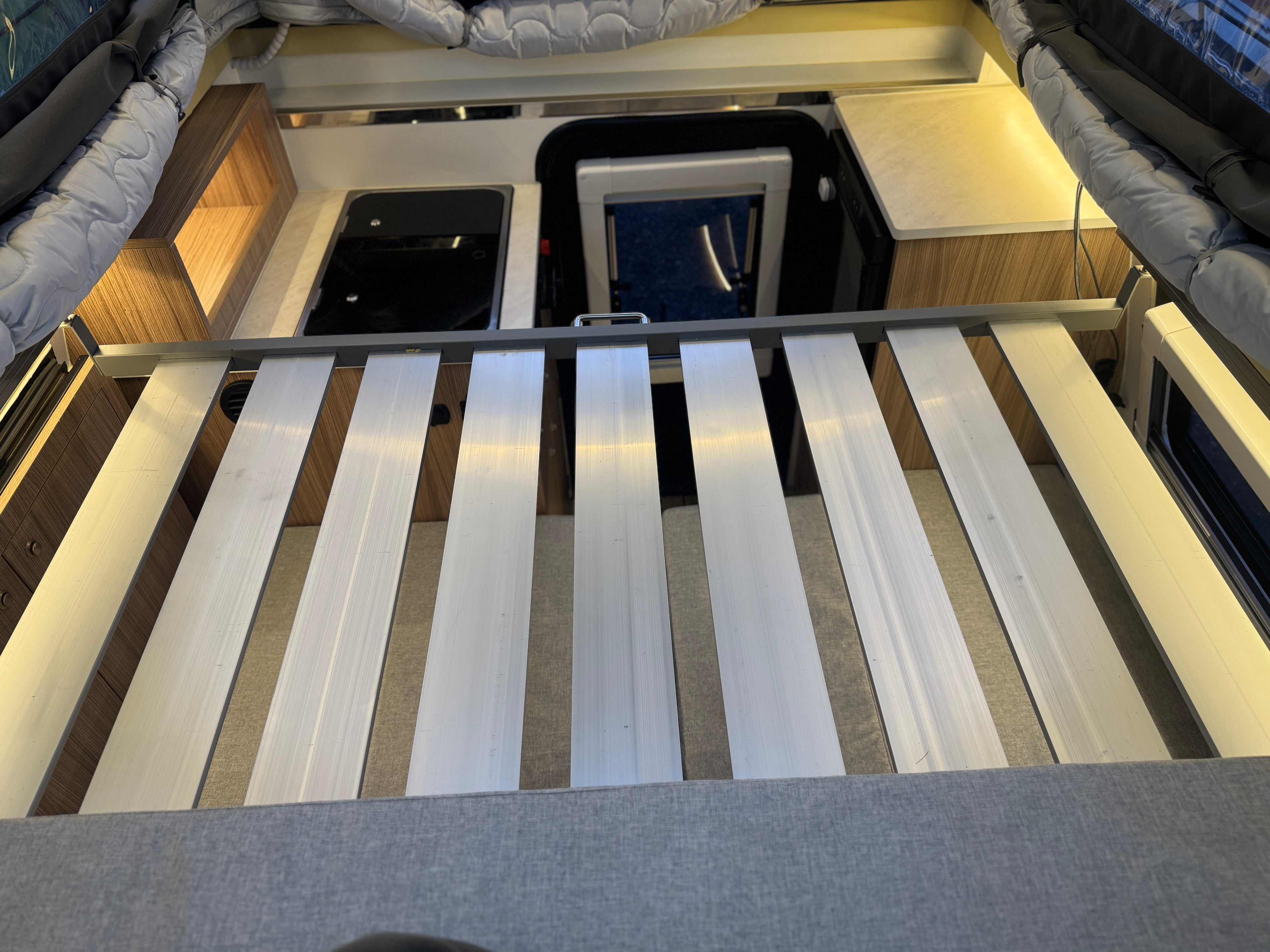

The aluminum pull-out platform is a queen with a memory foam and coconut coir mattress. The dinette table folds down and the bench becomes a second sleeping platform, so it sleeps up to four.

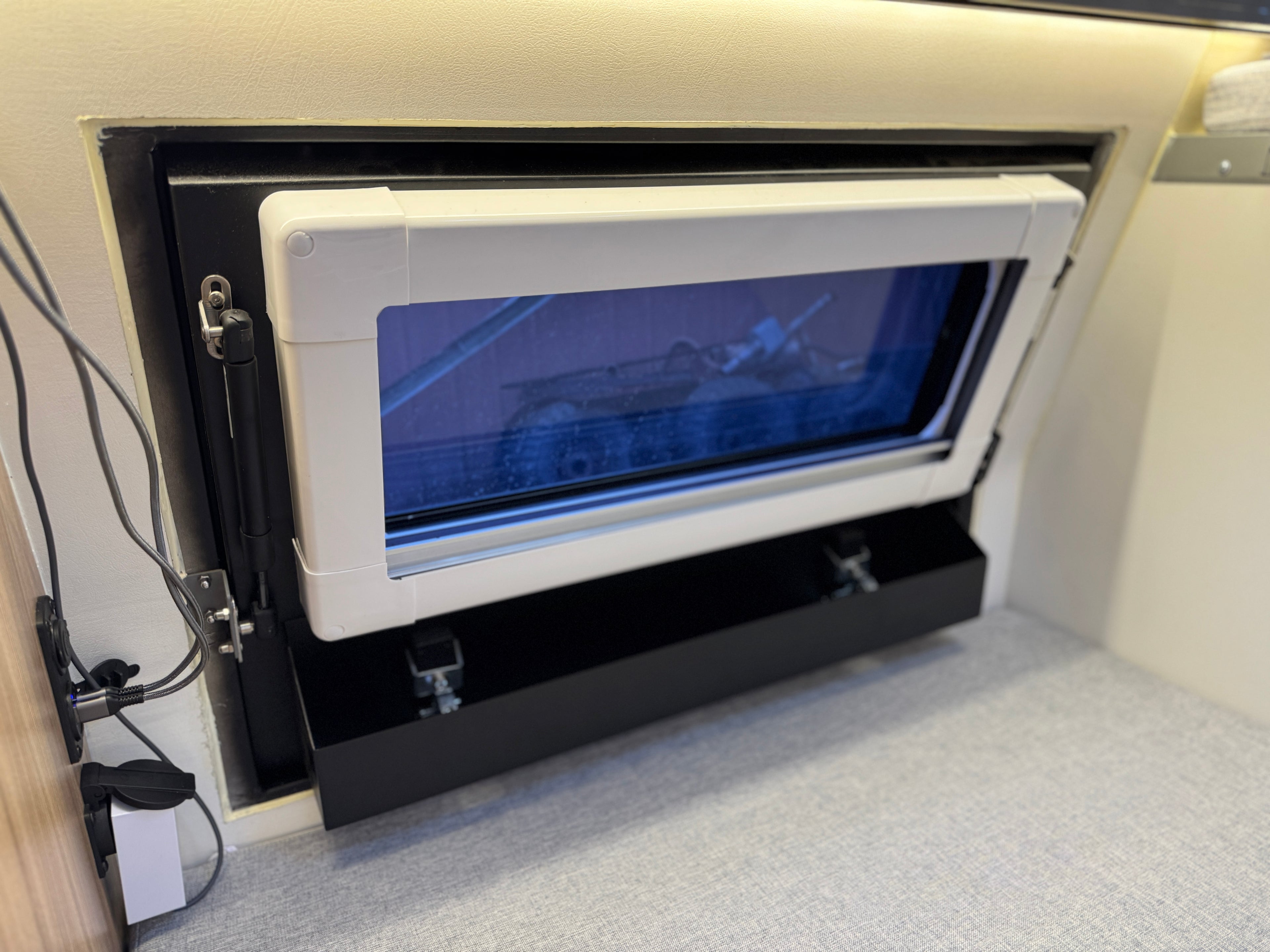

A passenger-side slide-out comes standard for storage, and the driver-side gullwing window doubles as a second way in and out.

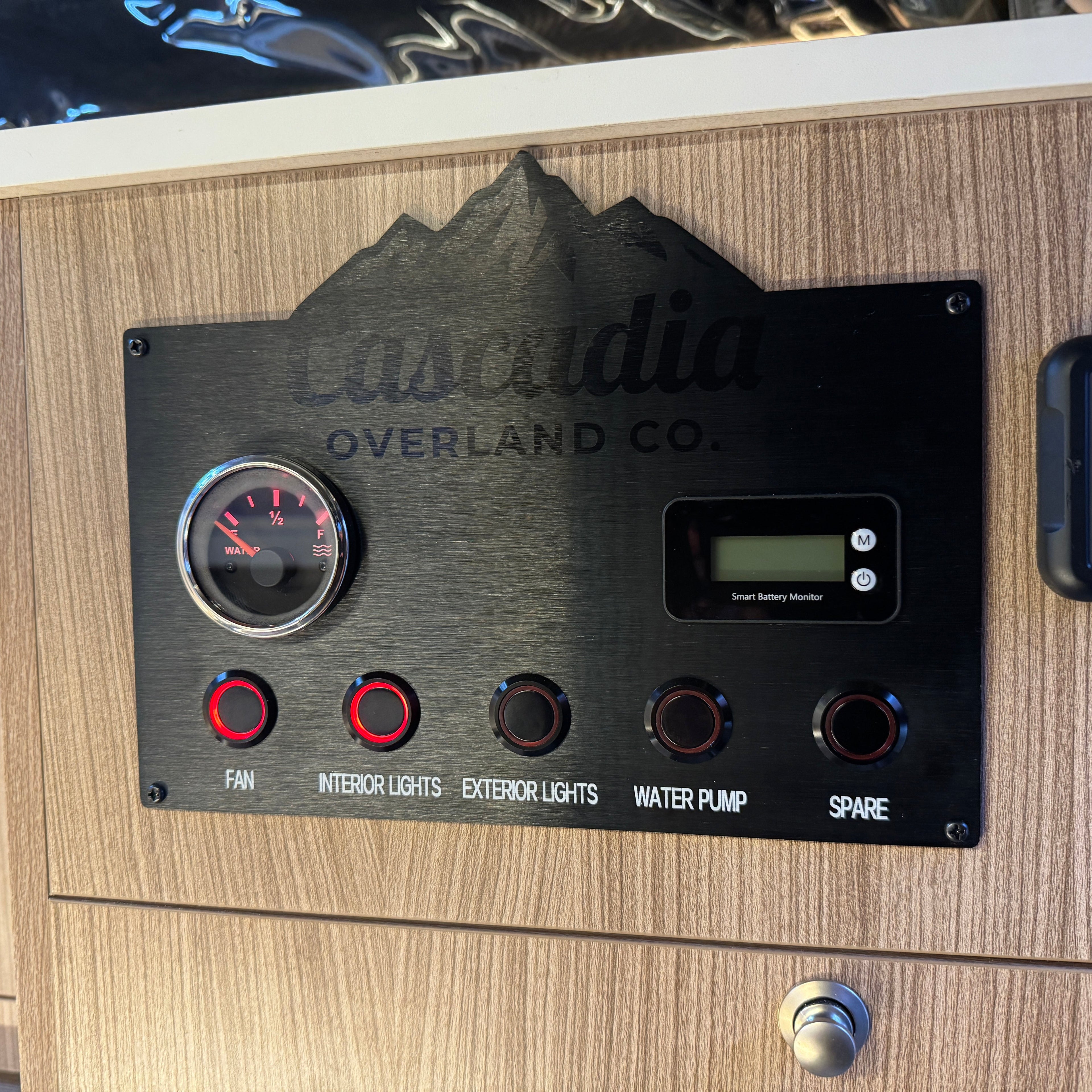

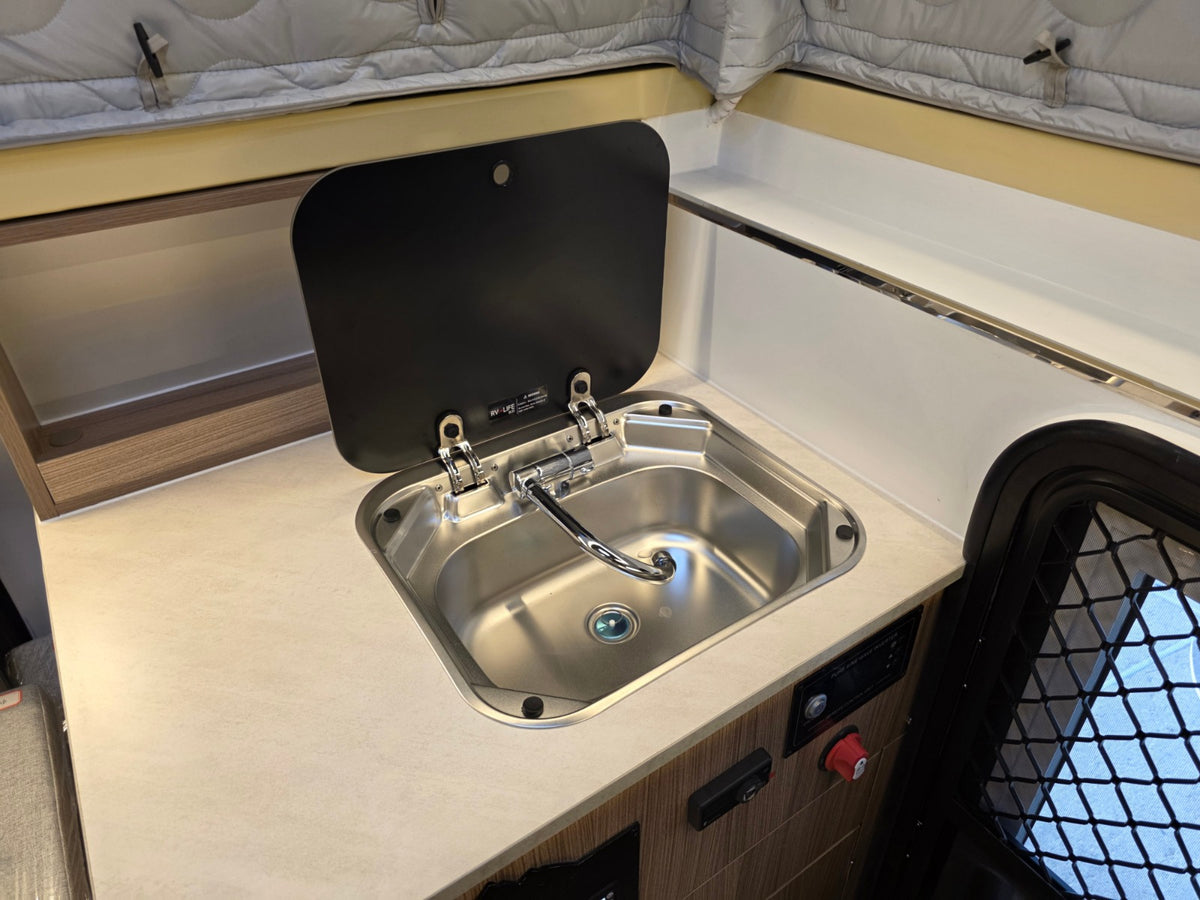

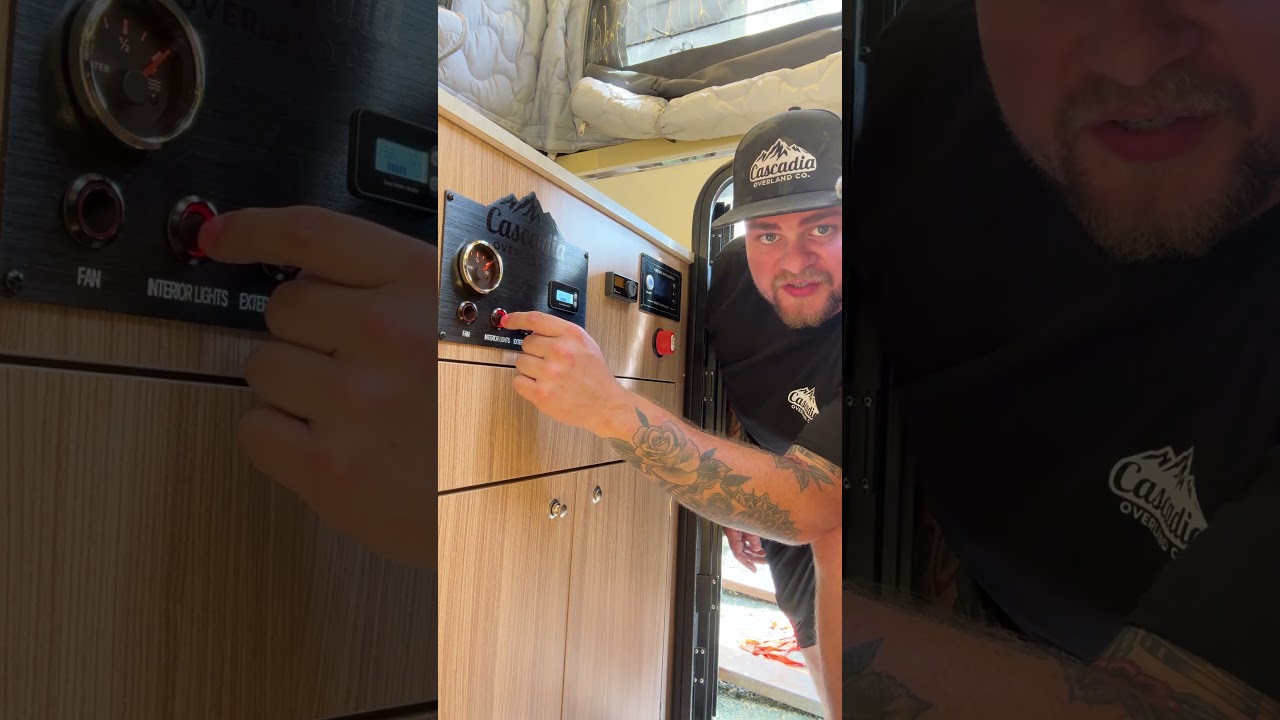

Apex galley sink and 12V control panel

Systems

Already plumbed and wired

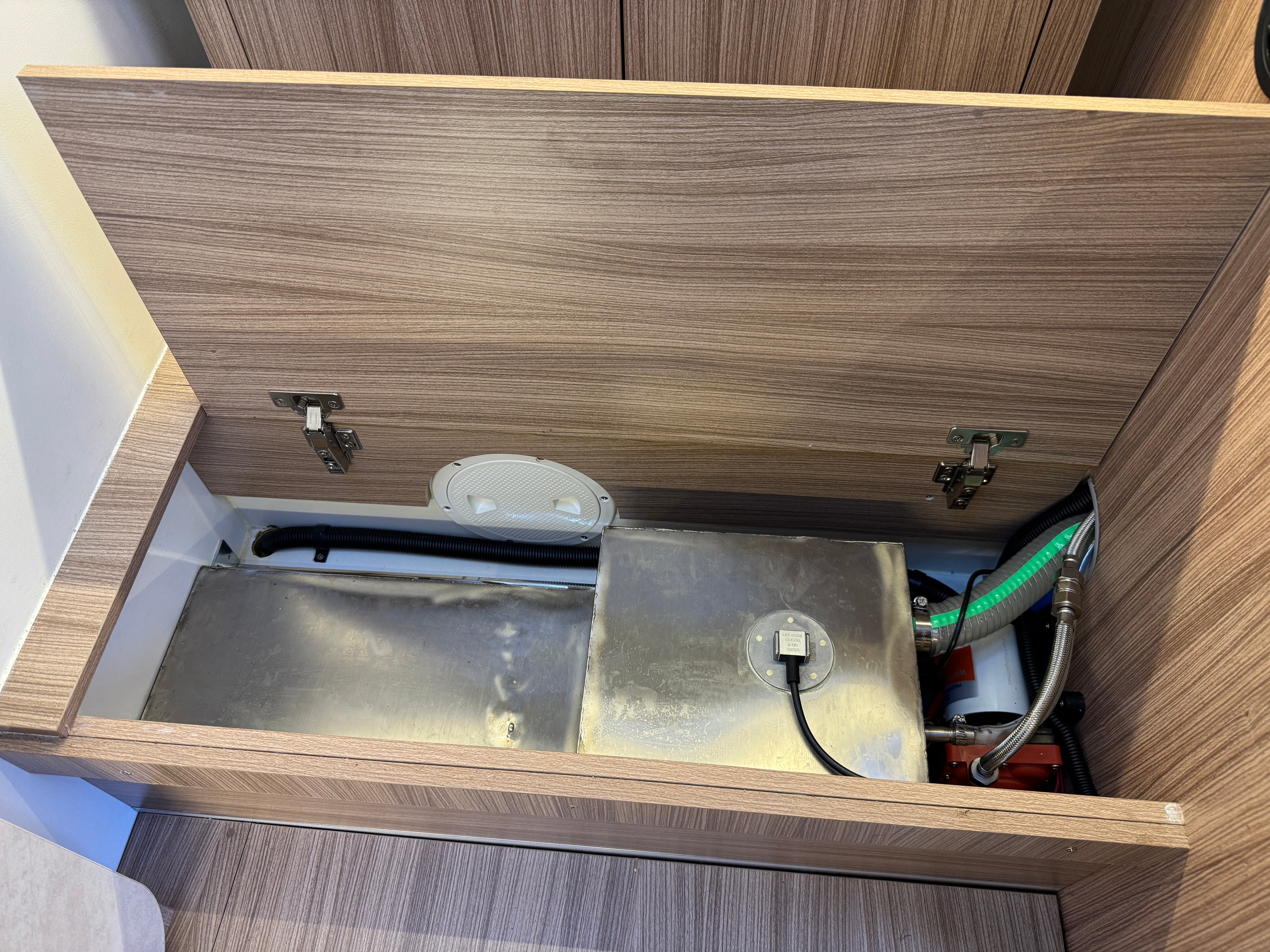

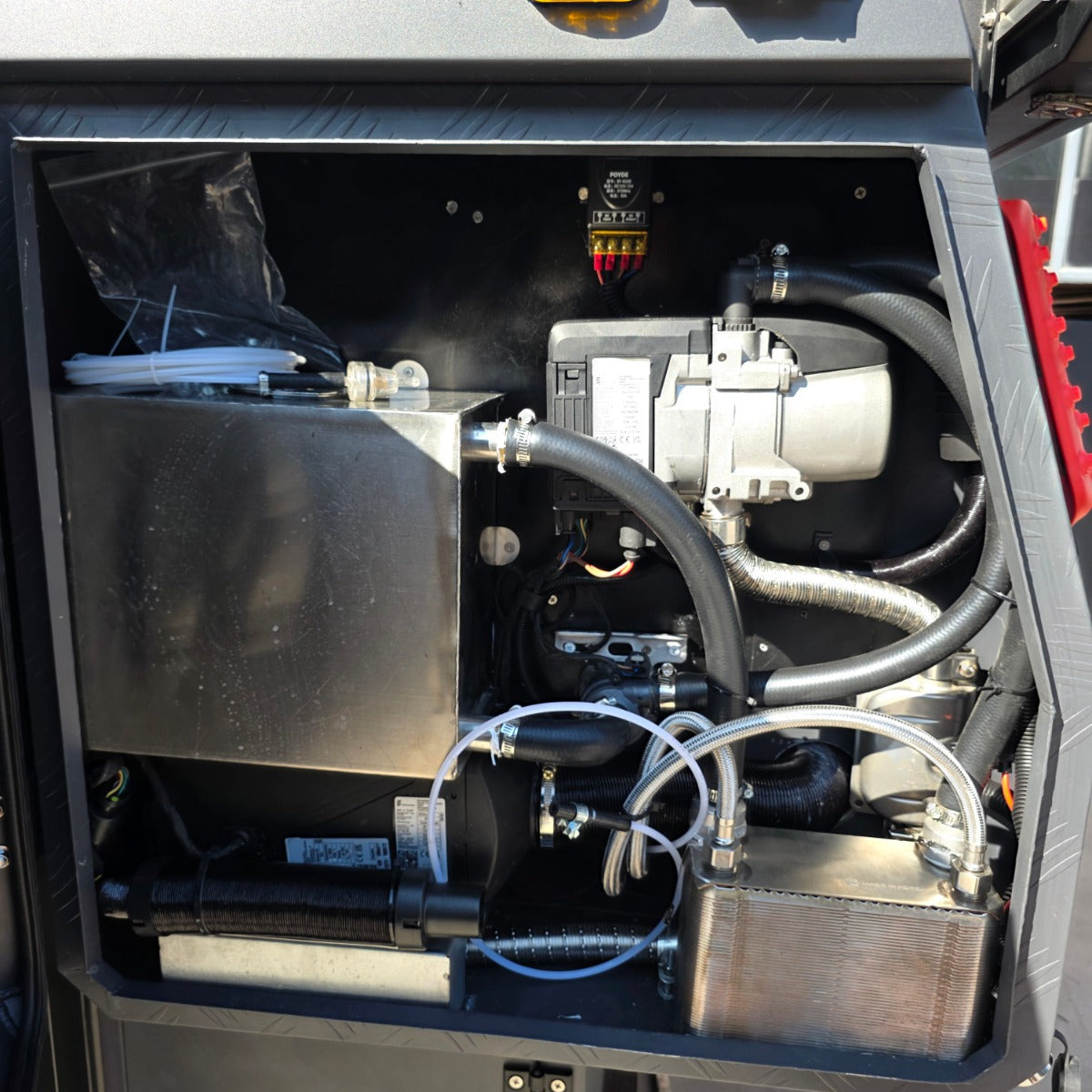

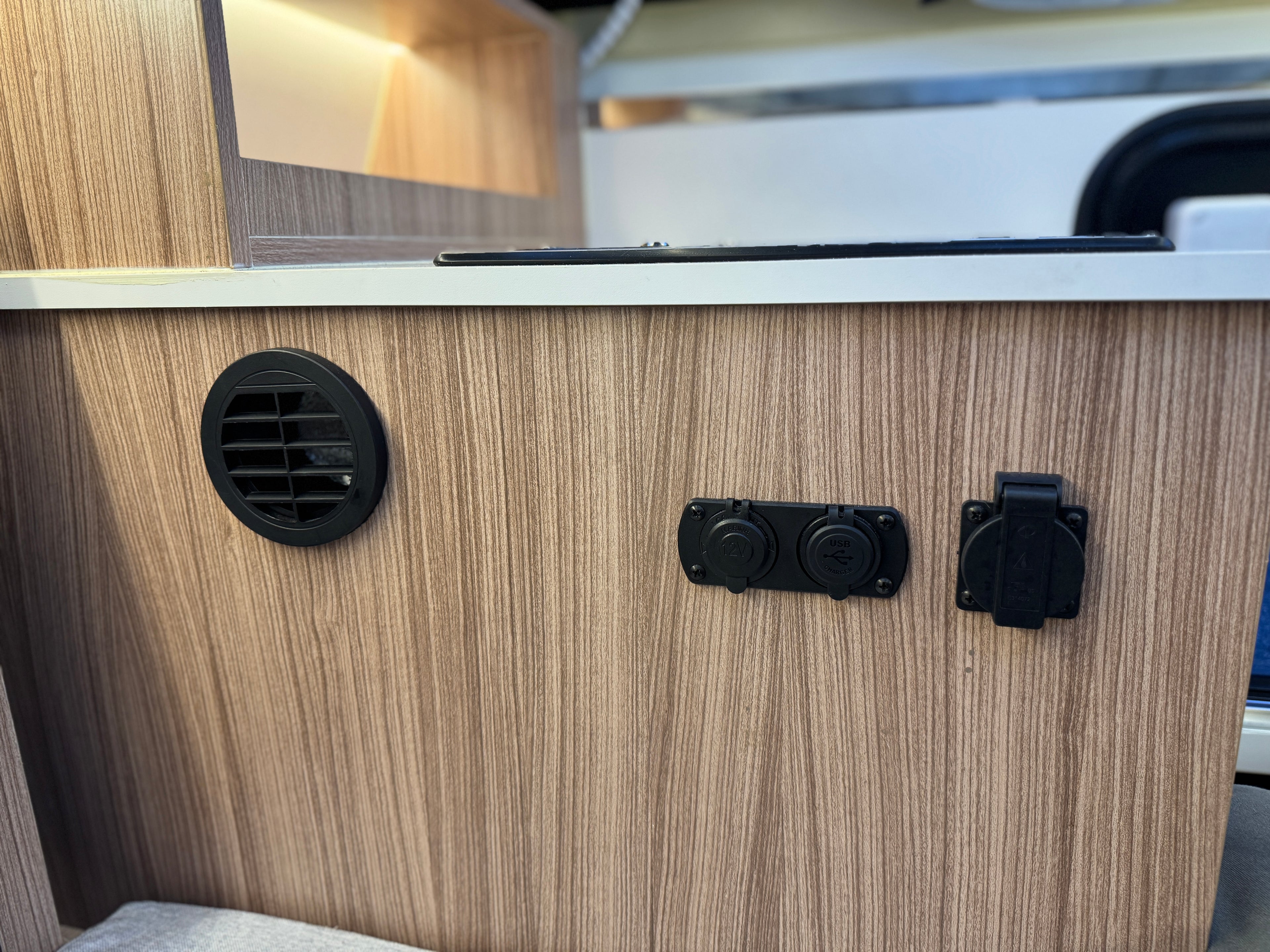

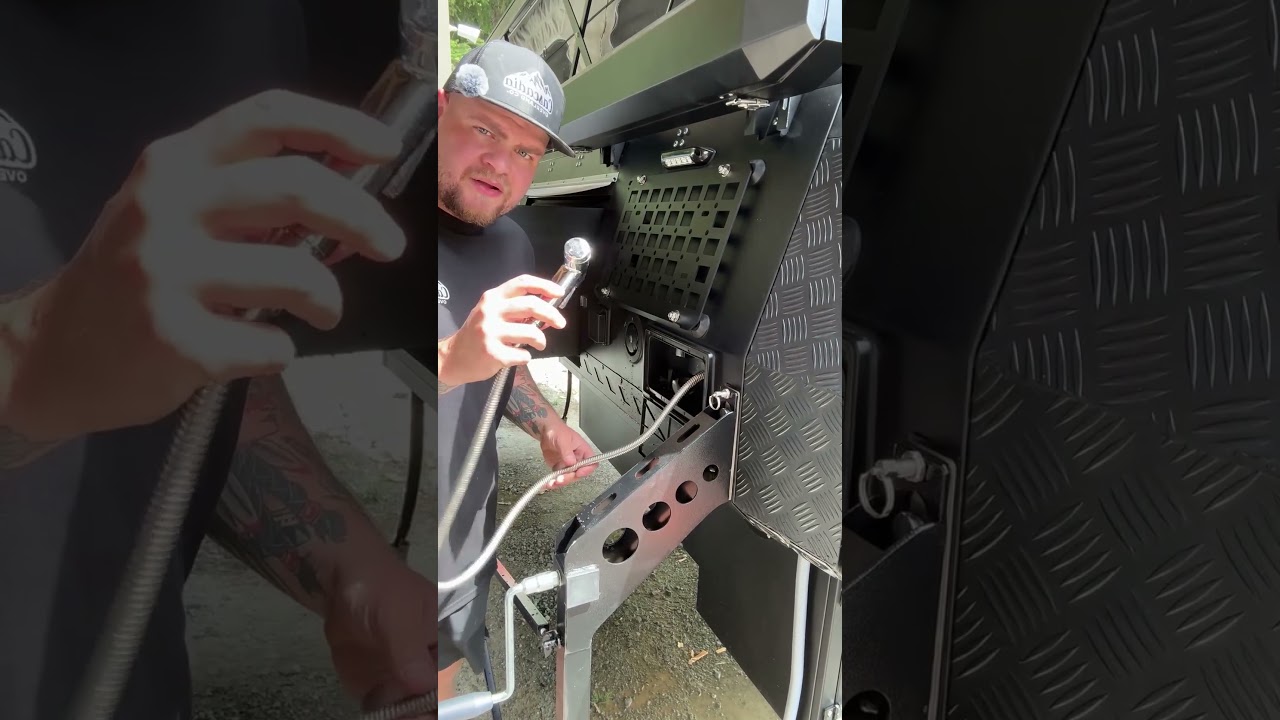

Fresh water, a level gauge and an exterior fill come standard. The Eberspacher diesel water heater sends hot water to the exterior shower, and to a sink if you add one. A 3000W inverter runs the AC outlets, and the shore charger tops up the battery when you plug in.

Roof solar and a Renogy 50A DC-DC charger keep it topped up while you drive, and you can take the solar from 150W up to 600W. It runs on diesel, so there is no propane to carry.

Apex welded aluminum shell in production

How it is built

Welded aluminum. No wood in the structure.

The shell is a fully welded aluminum monocoque, not a framed box with panels hung on it. No wooden studs in the structure and no seams relying on sealant to stay structural.

XPS board insulates the body, floor and ceiling, and a quilted thermal liner lines the canvas walls. Winterize the water system before a freeze.

Apex interior layout seen from above, roof off

Built to spec

Every Apex is drawn before it is built

There is no fixed model list. We size the camper to your truck, confirm the interior layout and exterior dimensions with you in CAD, and only then does it go into the build queue.

Short bed, long bed, mid-size or full-size, we draw it for your truck. We do not build for the Honda Ridgeline or Tesla Cybertruck.

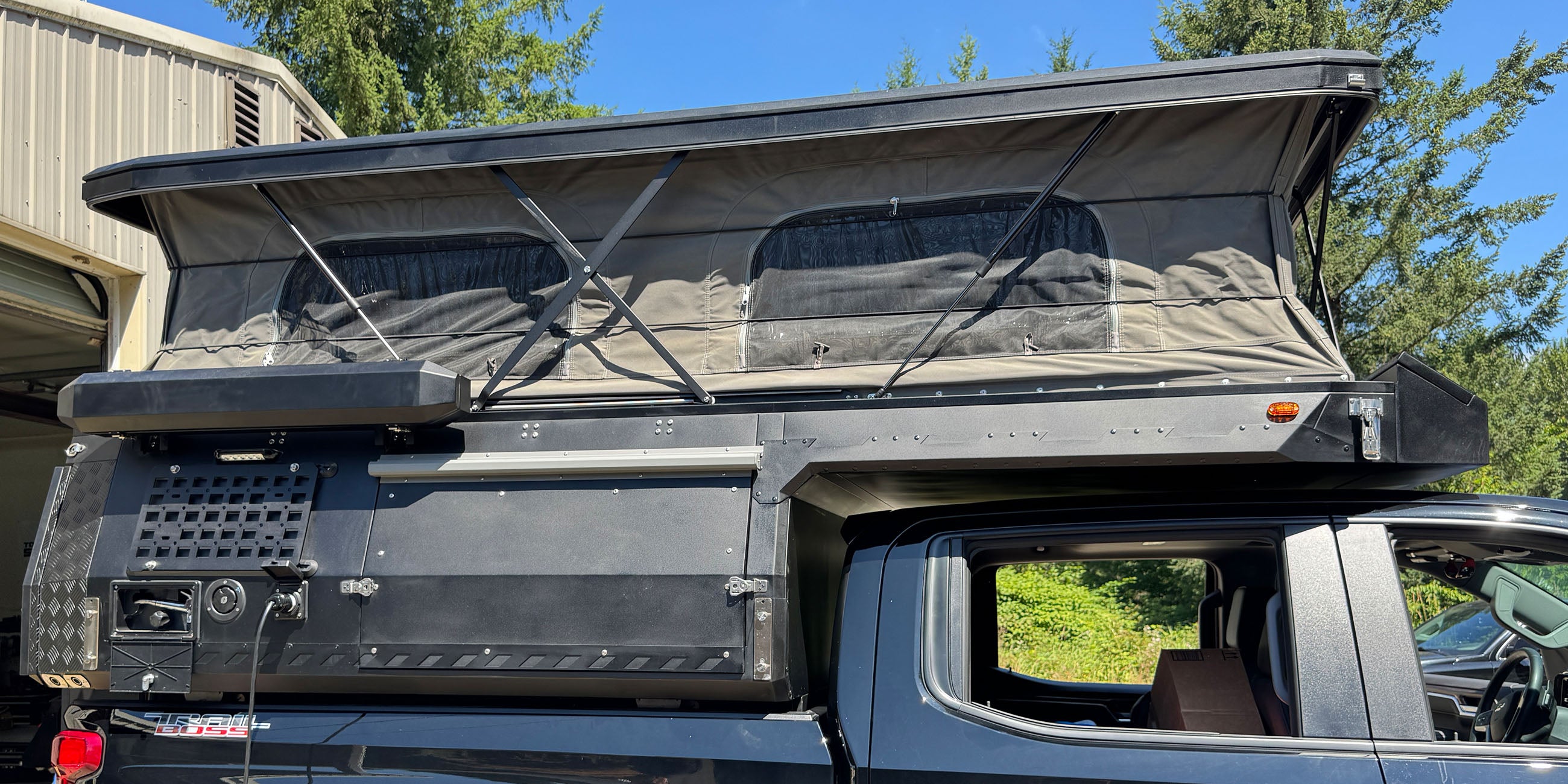

Apex on a Silverado with the pop-up open

Why we built it

Not a tent on a box. Not a house on a truck.

Shop truck campers and you get told to pick a side.

On one side, the off-road pop-up: light, tough, built to go anywhere. Then it hands you a bed and wishes you luck. On the other, the big traditional camper: every comfort, packed into a heavy, wood-framed box that drives like a building and ages like one.

We didn't want to pick. So we built the Apex around four rules.

Small enough to live with. Compact and low, so it doesn't have to come off the second you get home.

Turn-key from day one. Power, solar, water, diesel heat, a hot shower and a queen bed, all built in. Pull in, pop up, done.

It has to look right. Welded aluminum, clean lines and a stance you glance back at as you walk away.

It can't break the bank. All of that is standard, not a list of extras.

Less loading. Less fuss. More time out there.

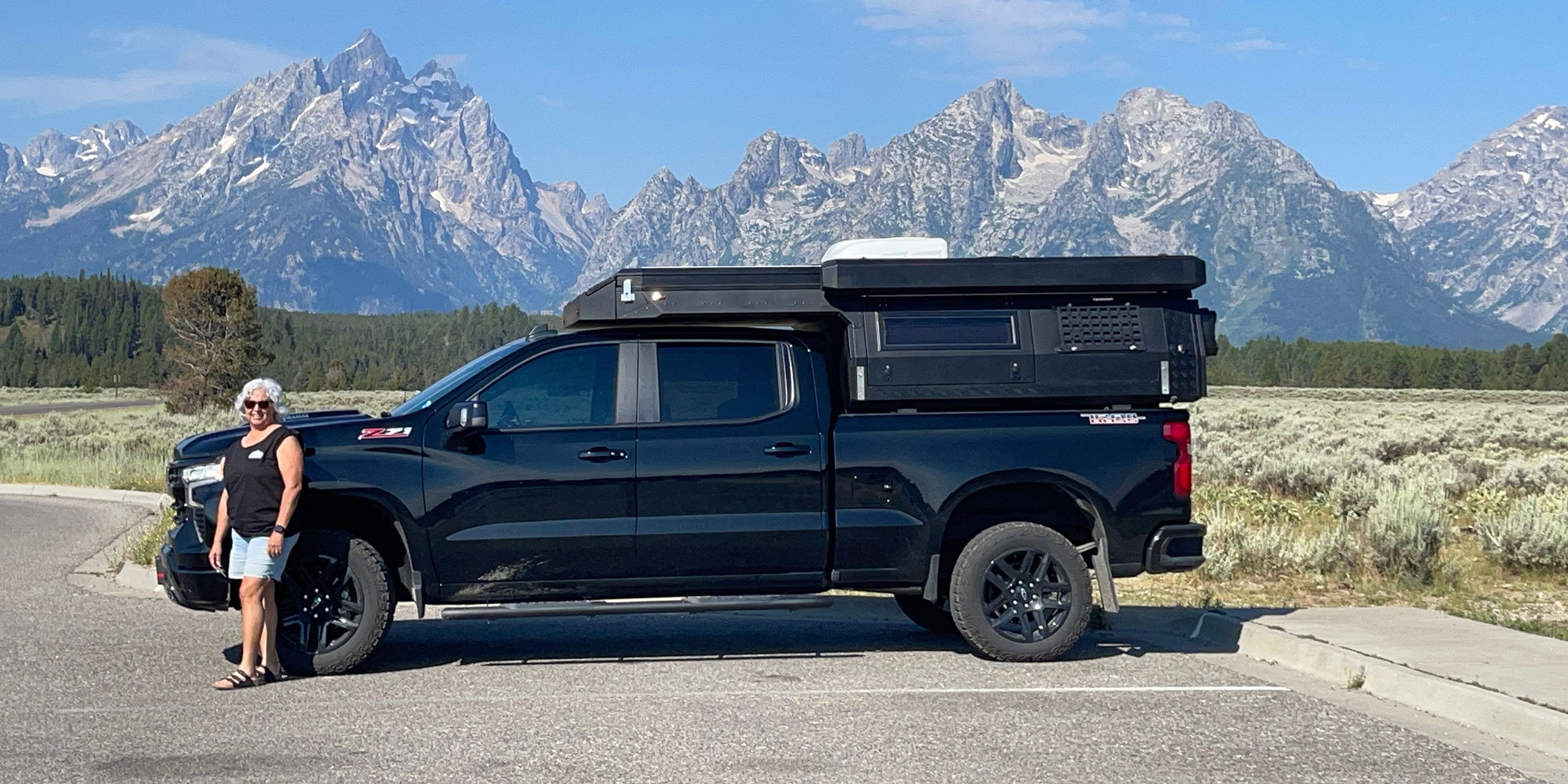

Apex on a black truck with the Tetons behind
Apex truck camper on a Chevrolet Silverado Trail Boss

Ready when you are

Build your Apex

Pick your truck and options in the 3D builder and send us your build. We confirm the fit with you, then build it to your bed.

  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
S
Steve Tag

We picked up our Apex on a Sunday! John and Eddy were kind enough to take half a day away from Family and spend it going thru everything with us. We camped all the way back to Texas with multiple stops to visit National parks along the way. 12 days on the road and approximately 4000 miles to break it in. We really enjoyed the freedom and scenery that camping gave us versus hotel stays every night going out to get the Apex (not to mention the Money saved) we have another trip of approximately 15 days planned for next month and that we are really looking forward to in our Apex. Very pleased so far with the service John and Eddy have given us and we believe the value the Apex has shown us is top notch. Highly recommended researching the Apex if you’re looking for a great pickup camper to hit the road with.

M
Michael

Great camper! Lead time was a little long but 100% worth it! Guys at Cascadia Overland were very helpful with figuring out what I needed and didn’t need. Excited for many years of camping with the family.
