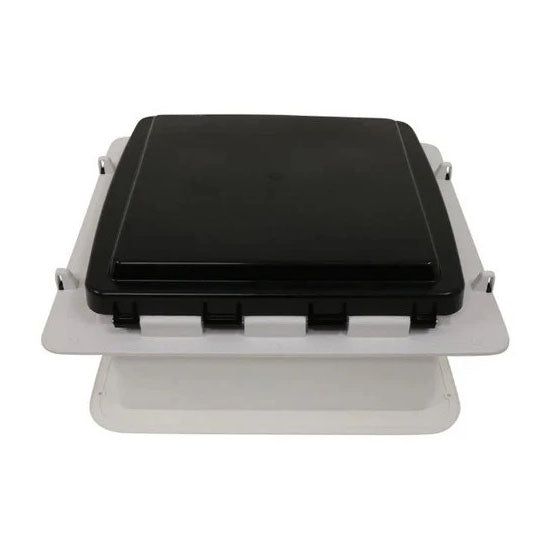

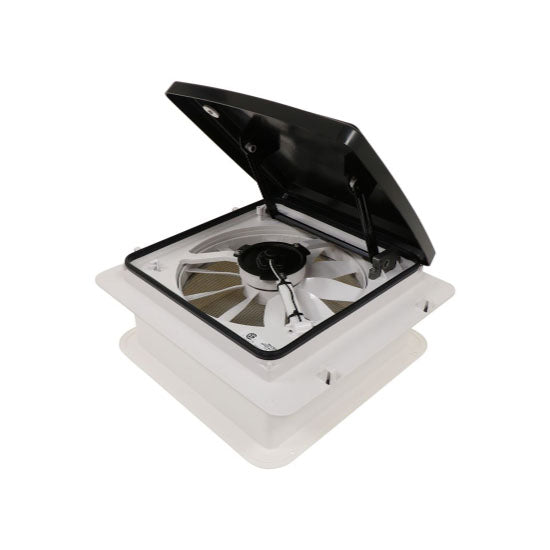

MaxxAir 4401M (Exhaust Only, No Remote)

The low profile ventilation option. Same 14 x 14 opening and same 12 inch fan blade as the Deluxe, but a shorter lid and simpler controls, so it sits about 2 inches lower on the roof. Four speeds, exhaust only, flush ceiling keypad, manual lift lid with twin arms and a lock. Runs with the lid closed to circulate air inside the camper. Ordered as a factory option, the fan is cut in, mounted, and sealed with Dicor lap sealant at our shop. Wire leads are left bare so you can route and power it to suit your own 12V build.

Specs:

• Part number: Maxxair 00-04401M, black lid, white frame
• Fits standard 14 x 14 inch roof opening
• 12 inch, 10 blade fan, over 900 CFM
• 12V DC, 4 speeds, sealed ball bearing motor, fuse protected
• Exhaust only, not reversible
• Manual lift lid, twin lifting arms with lid lock
• Flush mounted ceiling keypad
• Operates with lid closed for interior air circulation
• Removable insect screen, no tools
• Warranty: 2 years limited, lifetime limited on the lid

Fitment and clearance:

• Frontier: installed in the pop-up roof panel.
• Summit: same 14 x 14 cutout, centered in the roof panel.
• Adds approximately 3 inches to overall camper height with the lid closed, roughly 2 inches less than the Deluxe 7500K. Still worth checking against garage, carport, and trail clearance.
• Mounted and sealed with Dicor self-leveling lap sealant. Inspect the seal seasonally and reseal as needed.

Wiring:

• Leads are left bare inside the camper. Power source, fusing, and switch location are up to you.
• Fuse the circuit per Maxxair's instructions. Wiring is the owner's responsibility and is not covered under the Cascadia warranty.

Deluxe vs Mini:

• No built-in rain shield. The lid has to be closed in rain and while driving unless you add a Maxxair FanMate cover, sold separately.
• Exhaust only. No intake mode, no thermostat, no remote, no powered lid.
• Lower roof profile and lower cost.
