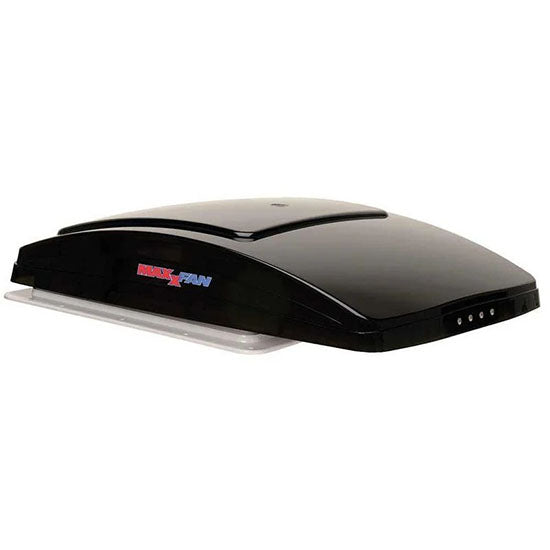

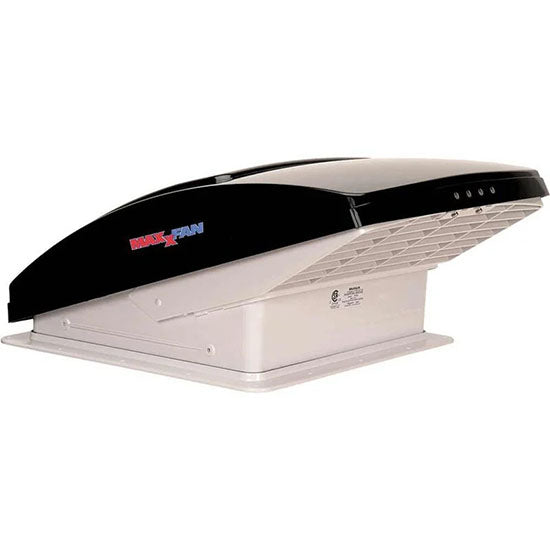

MaxxAir 7500K Fan (Intake/Exhaust, Remote Control)

Powered roof vent with a built-in rain shield, so it runs open in weather. Ten speeds, intake and exhaust, thermostat control, and a powered lid you can open and close from the ceiling keypad or the included remote. Ordered as a factory option, the fan is cut in, mounted, and sealed with Dicor lap sealant at our shop. Wire leads are left bare at the fan so you can route and power it to suit your own 12V build.

Specs:

• Part number: Maxxair 00-07500K, smoke lid
• Fits standard 14 x 14 inch roof opening
• 12 inch, 10 blade fan, 12V DC sealed ball bearing motor, fuse protected
• 10 speeds, reversible for intake or exhaust
• Built-in rain cover, use open in rain or while driving
• Electric lid, ceiling controls plus programmable remote
• Thermostat with auto fan control
• Removable insect screen, no tools


Fitment and clearance:

• Frontier: installed in the pop-up roof panel.
• Summit: same 14 x 14 cutout, centered in the roof panel.
• Adds approximately 5 inches to overall camper height with the lid closed. Factor this into garage, carport, and trail clearance. Watch for low branches on tight offroad trails. We recommend the MaxxAir 4401M if concerned about clearance.
• Mounted and sealed with Dicor self-leveling lap sealant. Inspect the seal seasonally and reseal as needed.

Wiring:

• Leads are left bare inside the camper. Power source, fusing, and switch location are up to you.
• Fuse the circuit per Maxxair's instructions. Wiring is the owner's responsibility and is not covered under the Cascadia warranty.
