400W Solar Panel
One panel, one set of connections, done.
A single 400W flush-mount monocrystalline panel bonded directly to the aluminum roof. No drilling, so the roof seal stays intact and there is nothing new to reseal every season. The panel sits low enough that it does not add meaningful height or catch wind on the highway.
One large panel is the simplest way to get 400 watts up there. Fewest connections, fewest failure points, and one lead pair to run into your build instead of two.
The trade is roof real estate. At about 79 by 39 inches the panel takes up most of the available space, so if you want a 14 by 14 inch MaxxAir fan on a Summit, look at the 500W package instead. It splits the same job across two smaller panels and leaves the opening free.
Who fits it

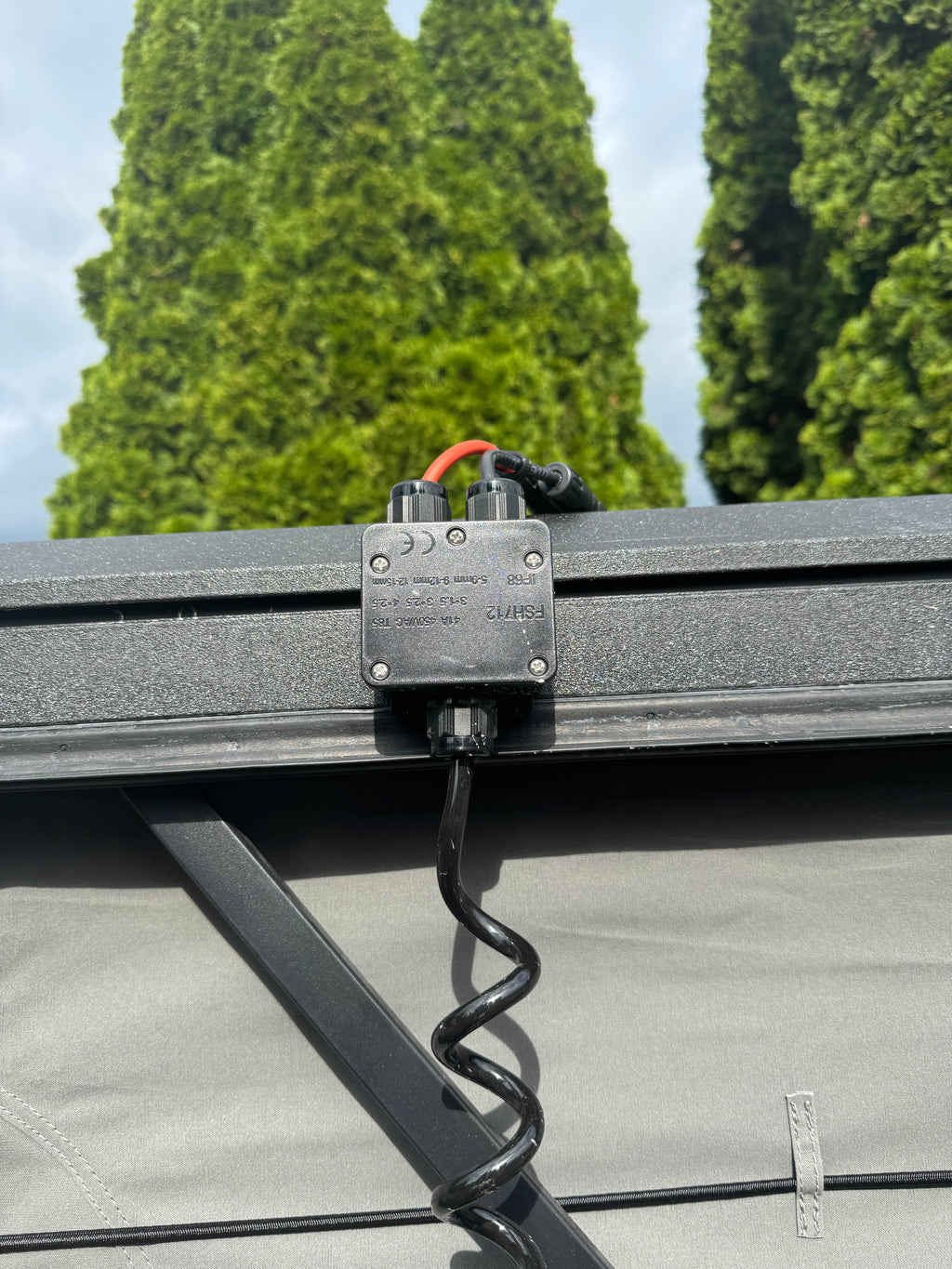

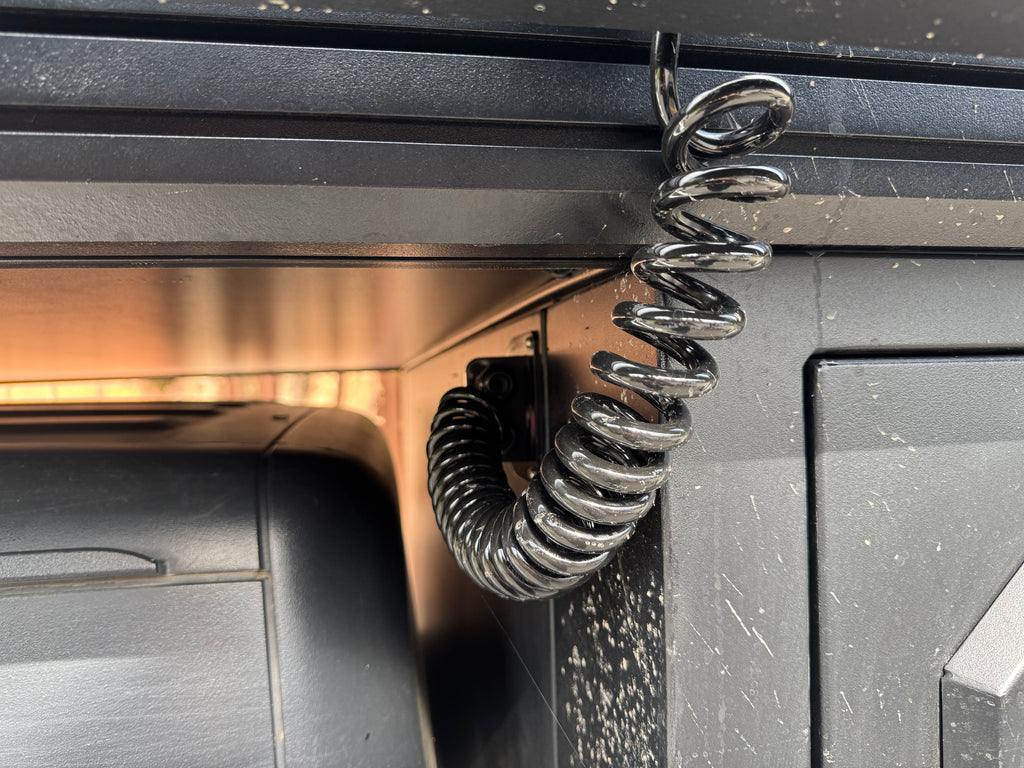

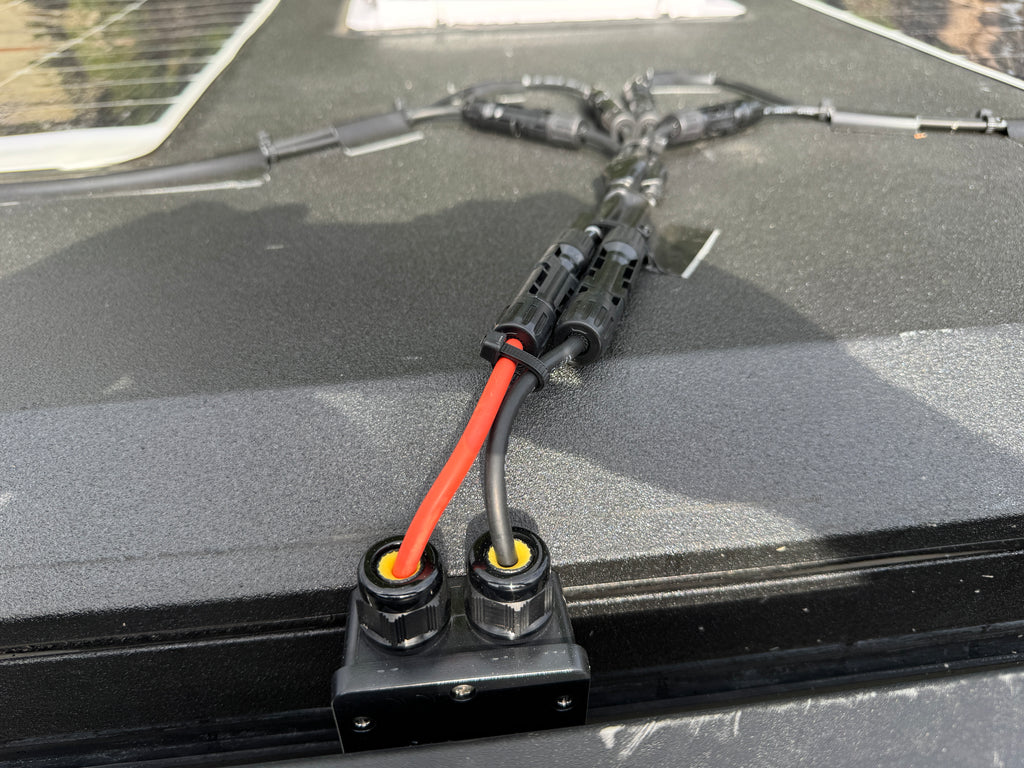

Ordered with your camper, it's fitted when the camper is built, with the leads run inside through a junction box. Added later, you fit it yourself, unless you're local and bring the camper to our shop. Either way, you run the leads to your own charge controller and battery.
Specifications
| Panel | 1 × 400W, OEM grade |
| Panel size | About 79″ × 39″ |
| Working voltage | 18V |
| Working current | 22.3A |
| Open circuit voltage | 21.6V |
| Short circuit current | 22.7A |
| Cell type | Monocrystalline, 22 to 23% conversion |
| Mounting | Flush bonded, no drilling |
| Rating | Weatherproof, hail rated |
| Availability | Frontier and Summit |
